Compact and doubly thorough.

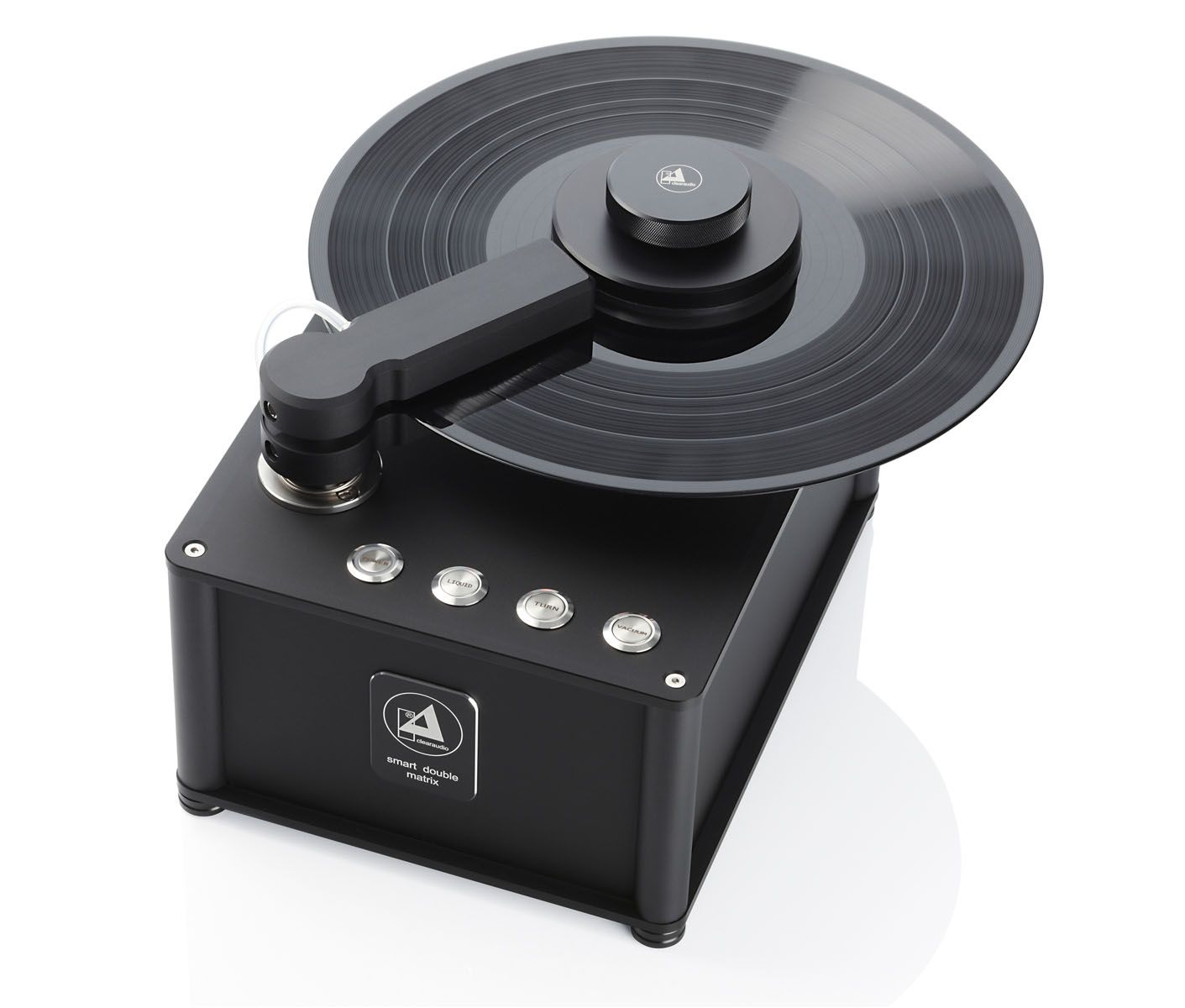

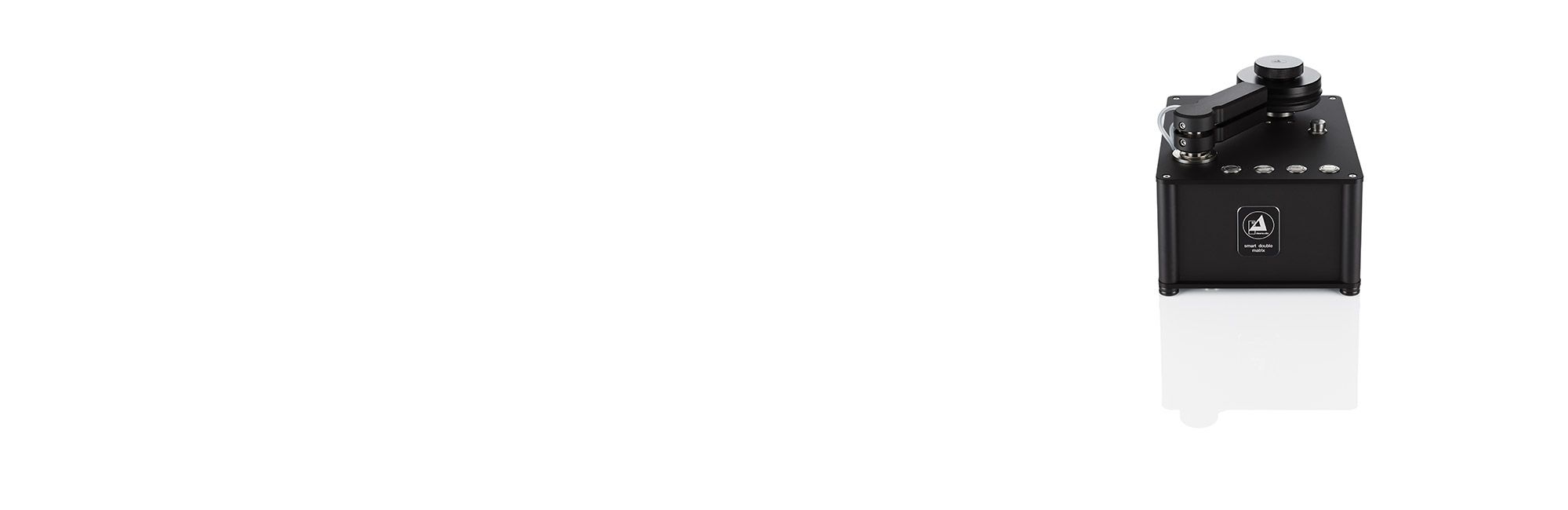

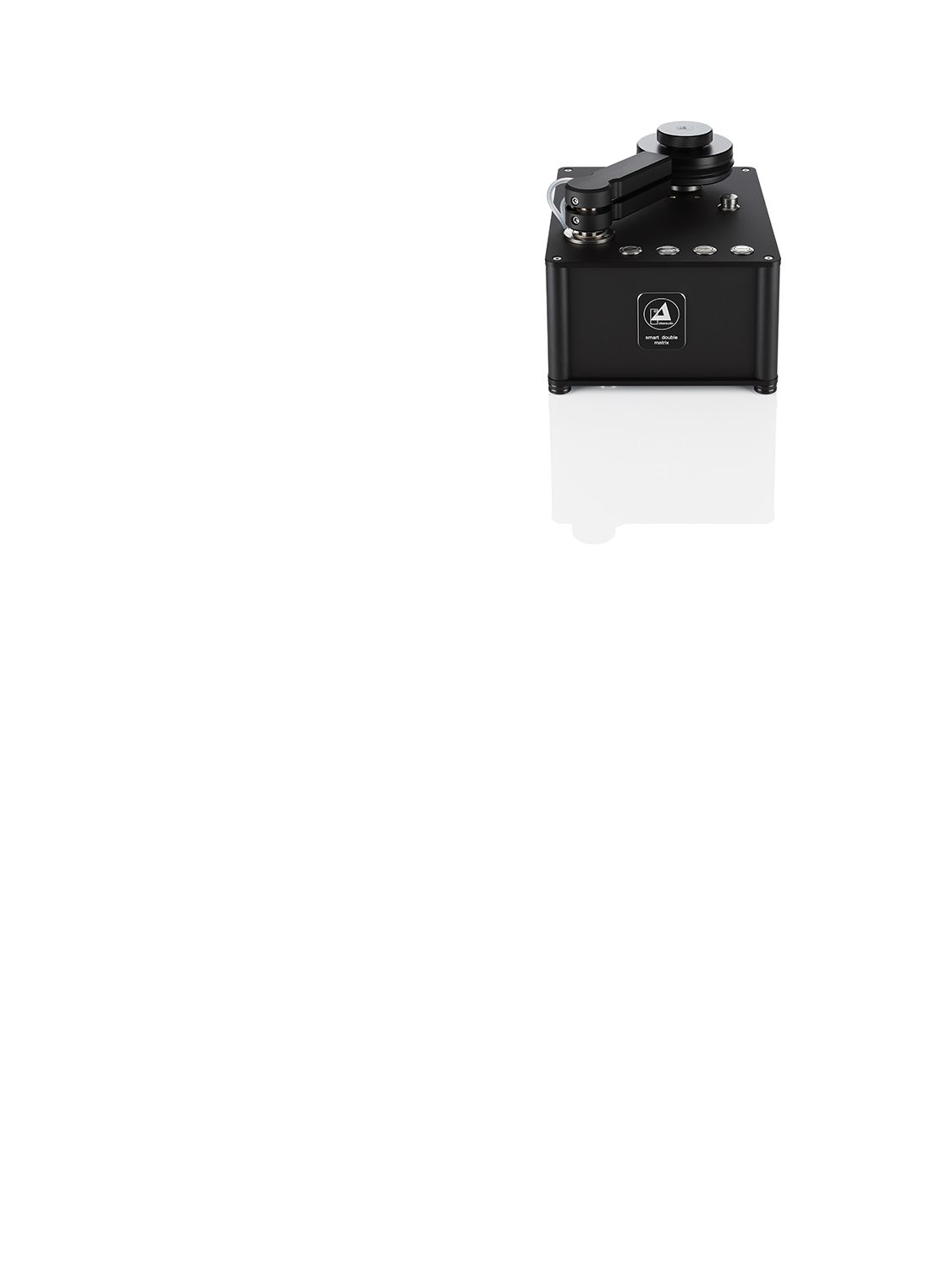

Smart Double Matrix

The smart double matrix brings professional vinyl cleaning into a compact format. Inspired by the double matrix professional SONIC, it combines proven clearaudio technology with intelligent reduction – ideal where space is limited.

Weight

Approx. 5.4 kg

Dimensions

with record clamp
Width: approx. 220 mm
Depth: approx. 290 mm
Height: approx. 210 mm

Material/Colour

specially satin-finished plastic / black

Double-sided cleaning

The smart double matrix cleans both sides of a vinyl record simultaneously: thoroughly, gently and time-savingly in just one pass. Even heavily soiled records can appear in their former glory after approximately two minutes of cleaning.

compass Silver in stunning lighting.

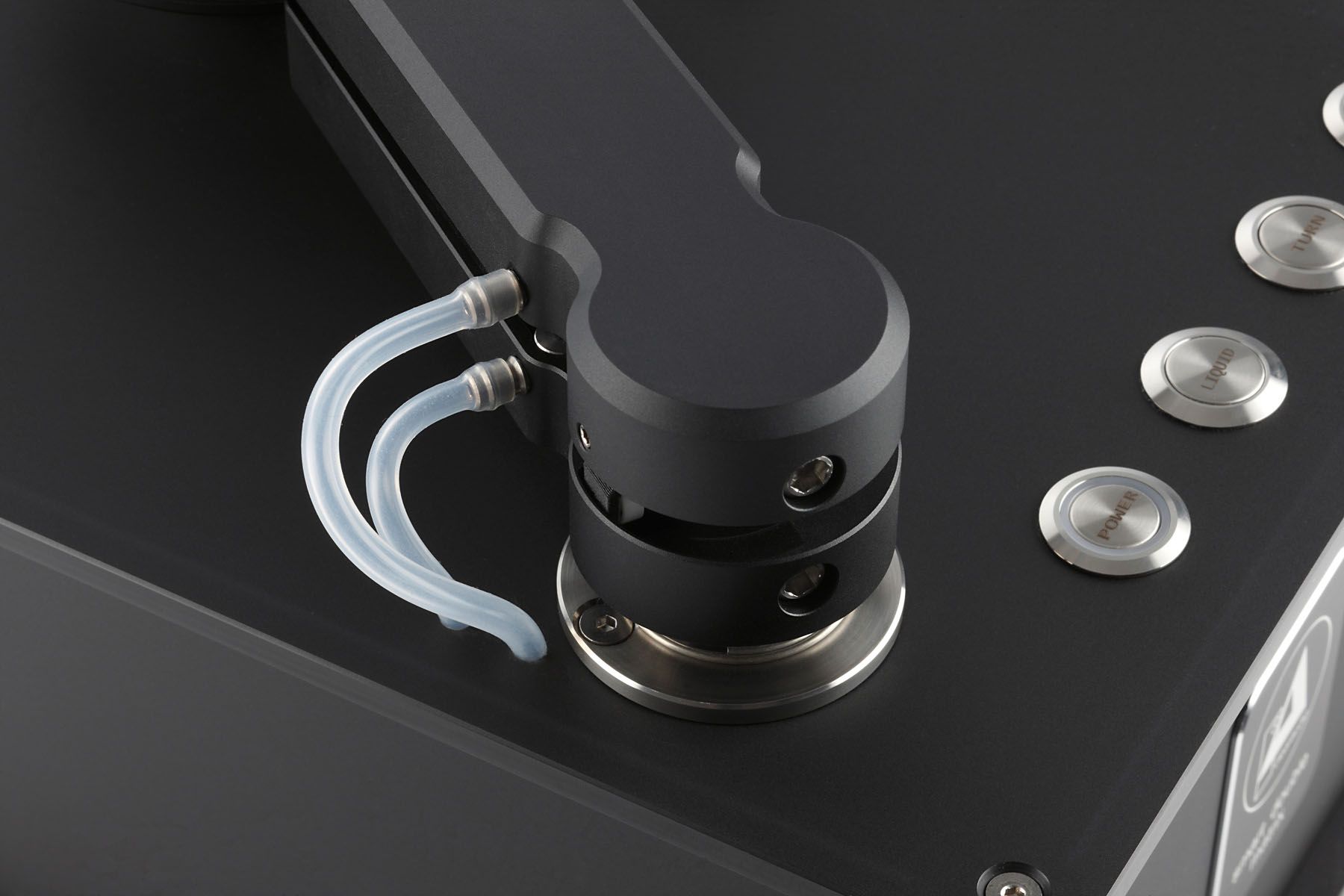

Adjustable brush contact

The precise cleaning mechanism is suitable for all common vinyl record sizes. A sliding control allows the contact area of the brushes to be adjusted individually.

compass Silver in stunning lighting.

Fluid at the push of a button

The record cleaning fluid is dispensed at the push of a button and can thus be adapted to the degree of soiling on the record. A stable record clamp reliably protects the sensitive label from moisture during cleaning.

compass Silver in stunning lighting.

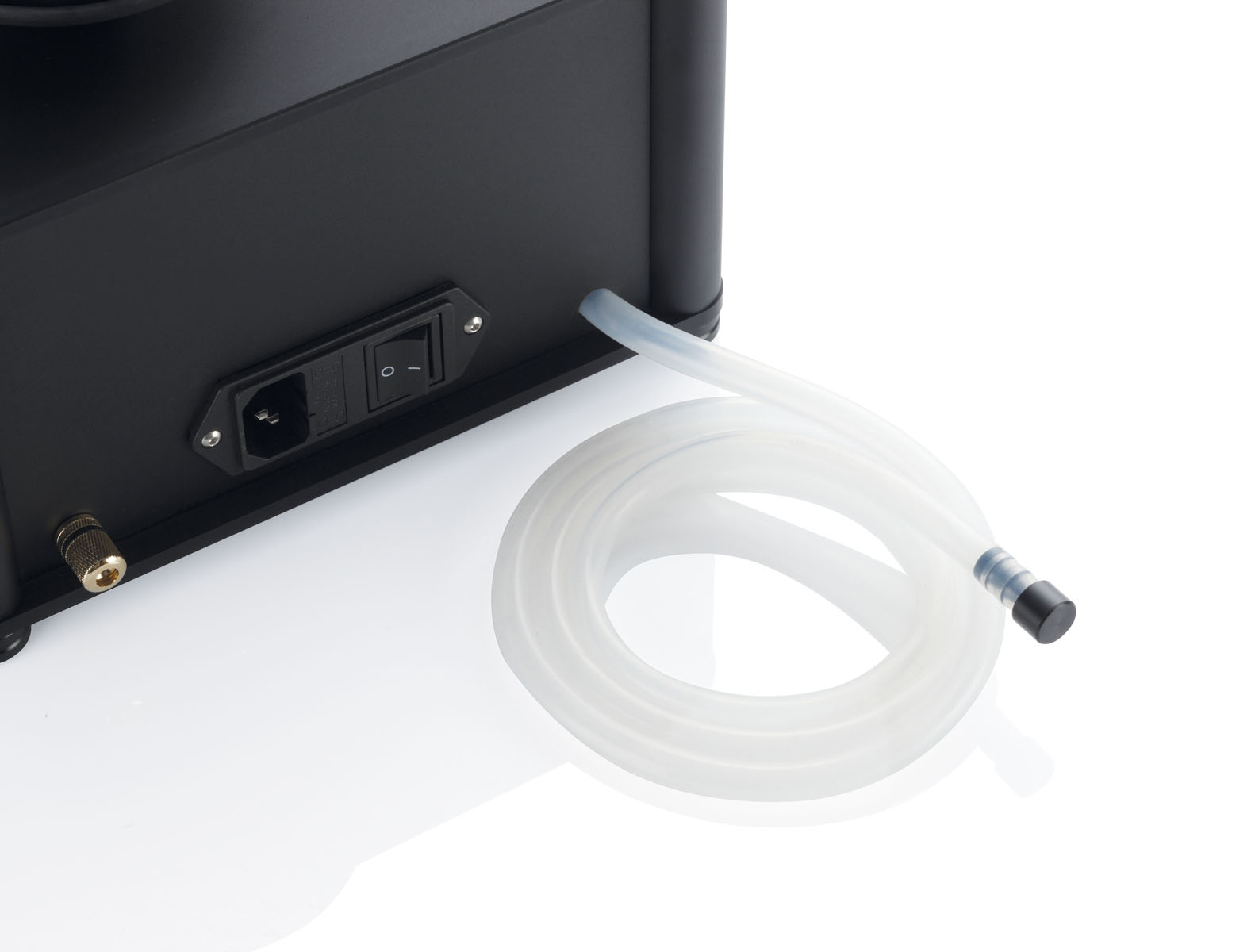

Quiet extraction

The low-noise vacuum turbine dries the vinyl record powerfully yet quietly.

Stable and low-vibration.

The robust housing impresses with high stability and low-vibration operation. With the smart double matrix, clearaudio concentrates professional vinyl care on the essentials – compact, efficient and straightforward.

Close-ups

Close-up of a clearaudio cartridge system with visible, coloured connecting cables.

Detailed view of the rear of the silver housing with power connection and vibration-damping foot.

Detail view of the precision-engineered tonearm bearing and lift system in silver-coloured metal.

Top view of the compass's precision-ground metal sub-platter and precise belt drive.

Specifications

Technical Data – smart double matrix

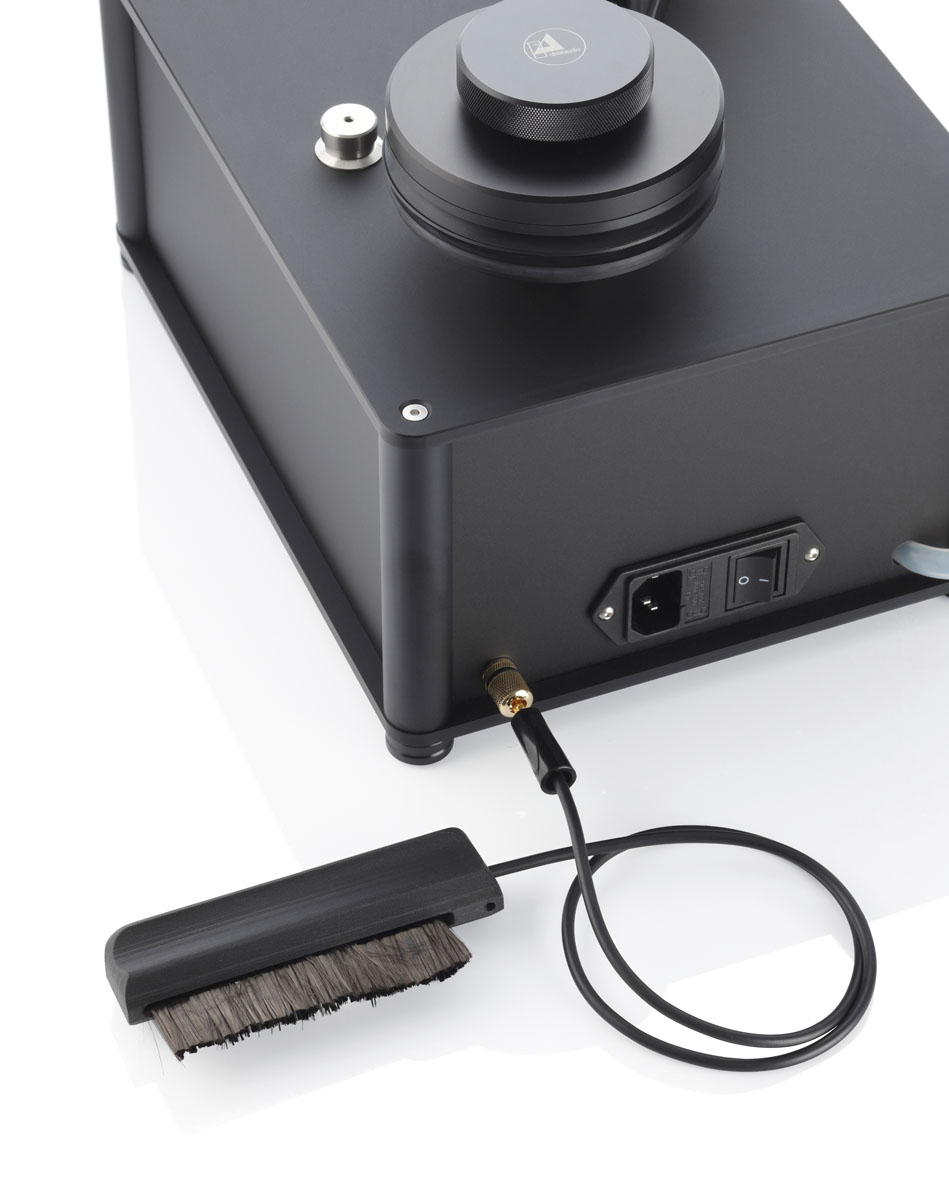

MAIN FEATURES:	Double-sided cleaning Cleaning of 7, 10 and 12 inch records possible Clockwise/anticlockwise rotation Fluid application at the touch of a button Manual control of individual cleaning steps Anti-static brush unit for discharging static electricity
POWER CONSUMPTION:	Max. power consumption: 190 watts Switched off: 0.0 watts (set toggle switch on rear of unit to “0”)
WEIGHT:	approx. 5.4 kg
DIMENSIONS (W/D/H):	approx. 220 × 290 × 210 mm (with record clamp)
WARRANTY	3 years* * If the completed warranty card is returned to clearaudio within 14 days of purchase.
