Precision in balance.

Satisfy Kardan

The Satisfy Kardan is mounted on two axes and uses high-quality sapphire bearings from the German watch industry both horizontally and vertically. The tonearm combines precise bearing technology with high flexibility and can be combined with a particularly wide range of turntables and cartridges.
Icons and features section

Weight

Aluminium silver, black, Signature:

approx. 490 g
(incl. counterweight)

Weight

Carbon:

approx. 480 g
(incl. counterweight)

Offset angle

24.02°

Material/Colour

Aluminium (black/silver), stainless steel, tonearm tube made of aluminium (black/silver) or carbon (silver)

Content

High-quality bearing technology

The vertical bearing with polished tungsten shaft is embedded in precisely balanced sapphire bearings. The horizontal bearings are made of particularly durable ceramic.

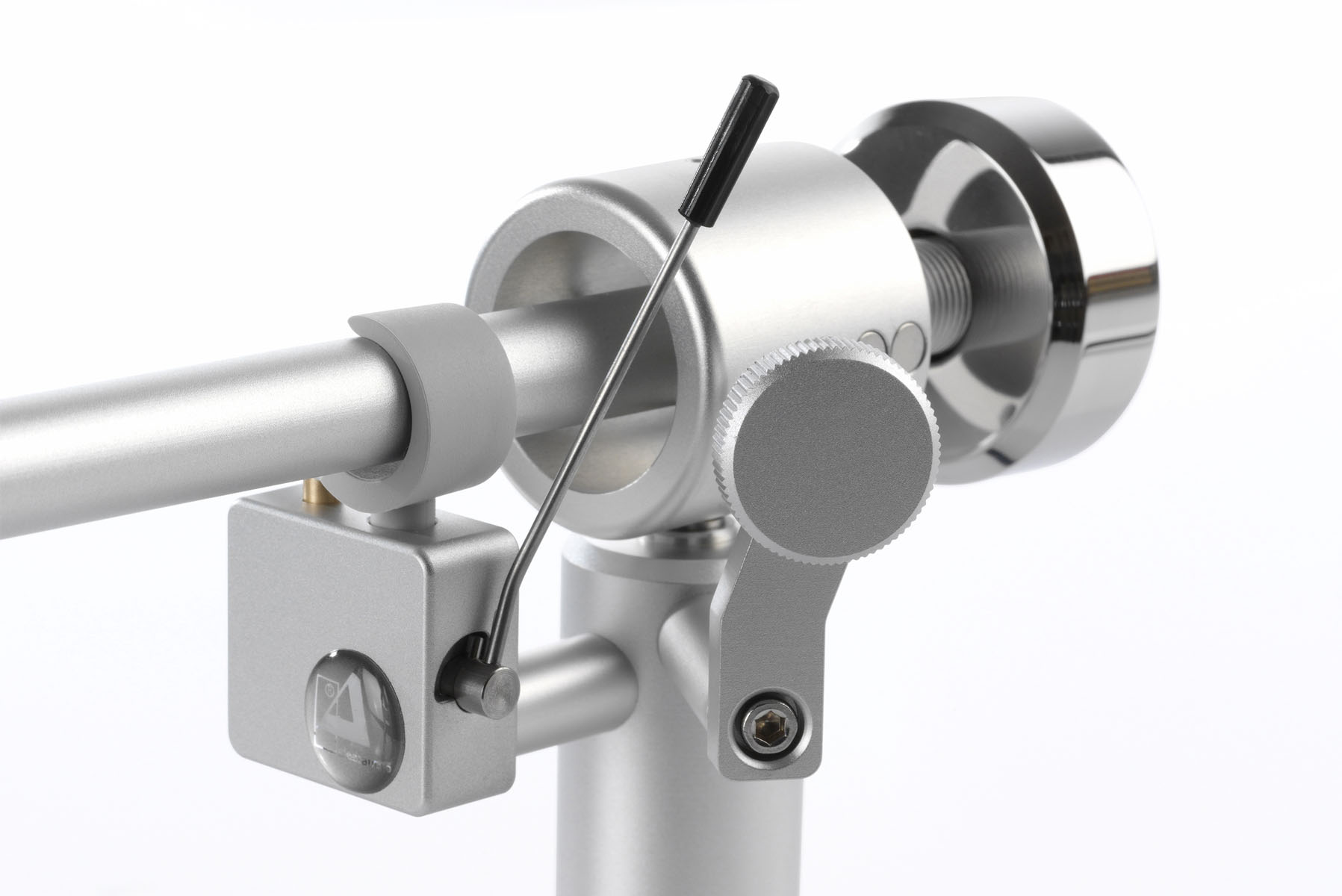

A macro shot of the bearing and anti-skating mechanism of the clearaudio Satisfy Kardan in the aluminium version. A knurled screw for magnetic adjustment of anti-skating is clearly visible.
A macro shot of the bearing and anti-skating mechanism of the clearaudio Satisfy Kardan in the aluminium version. A knurled screw for magnetic adjustment of anti-skating is clearly visible.
Magnetic precision: easily accessible adjustment screw for anti-skating.

Precisely adjustable

The Azimuth can be adjusted via the pre-mounted aluminium Headshell. The anti-skating is magnetically adjusted and fixed via an easily accessible set screw.

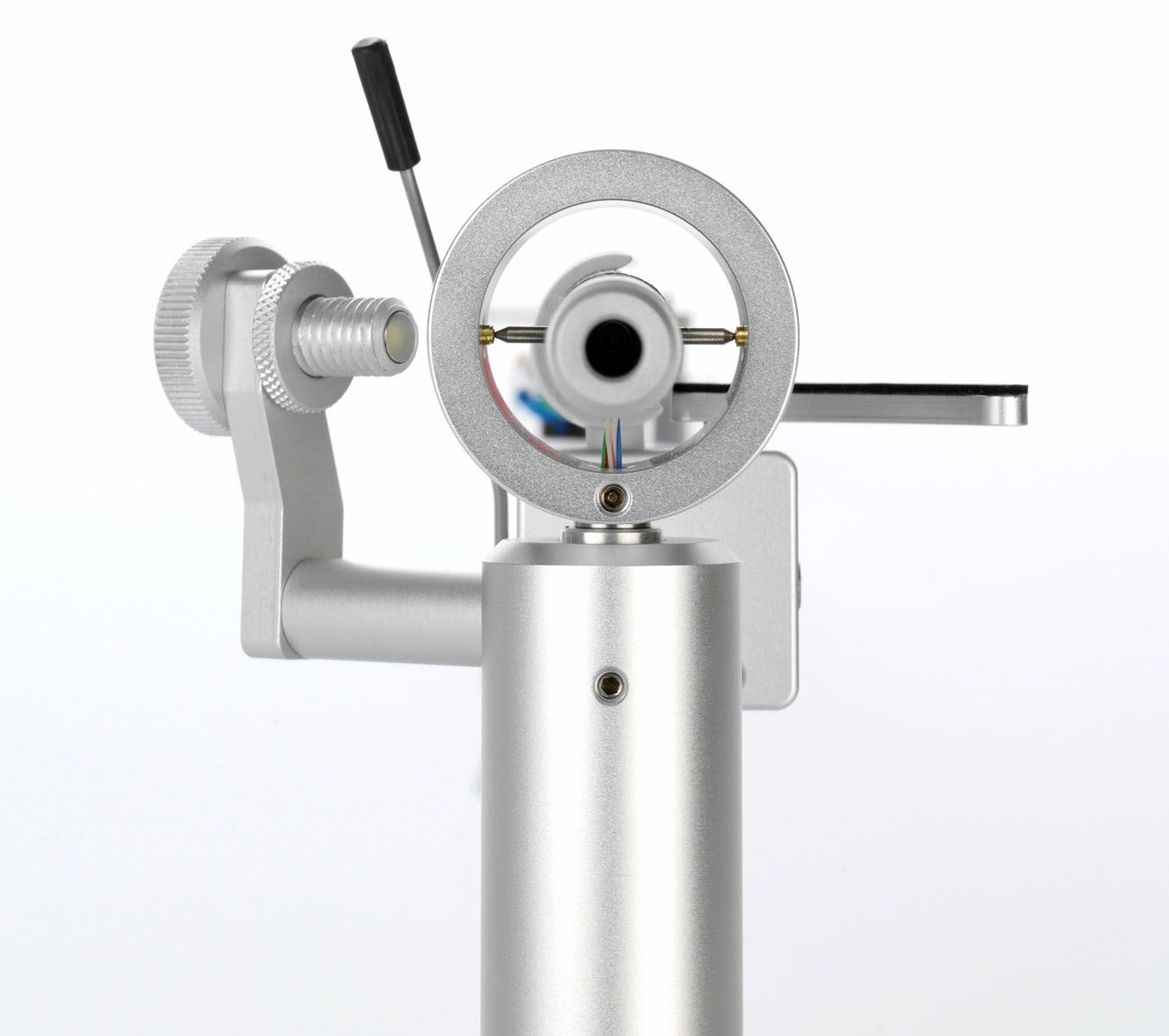

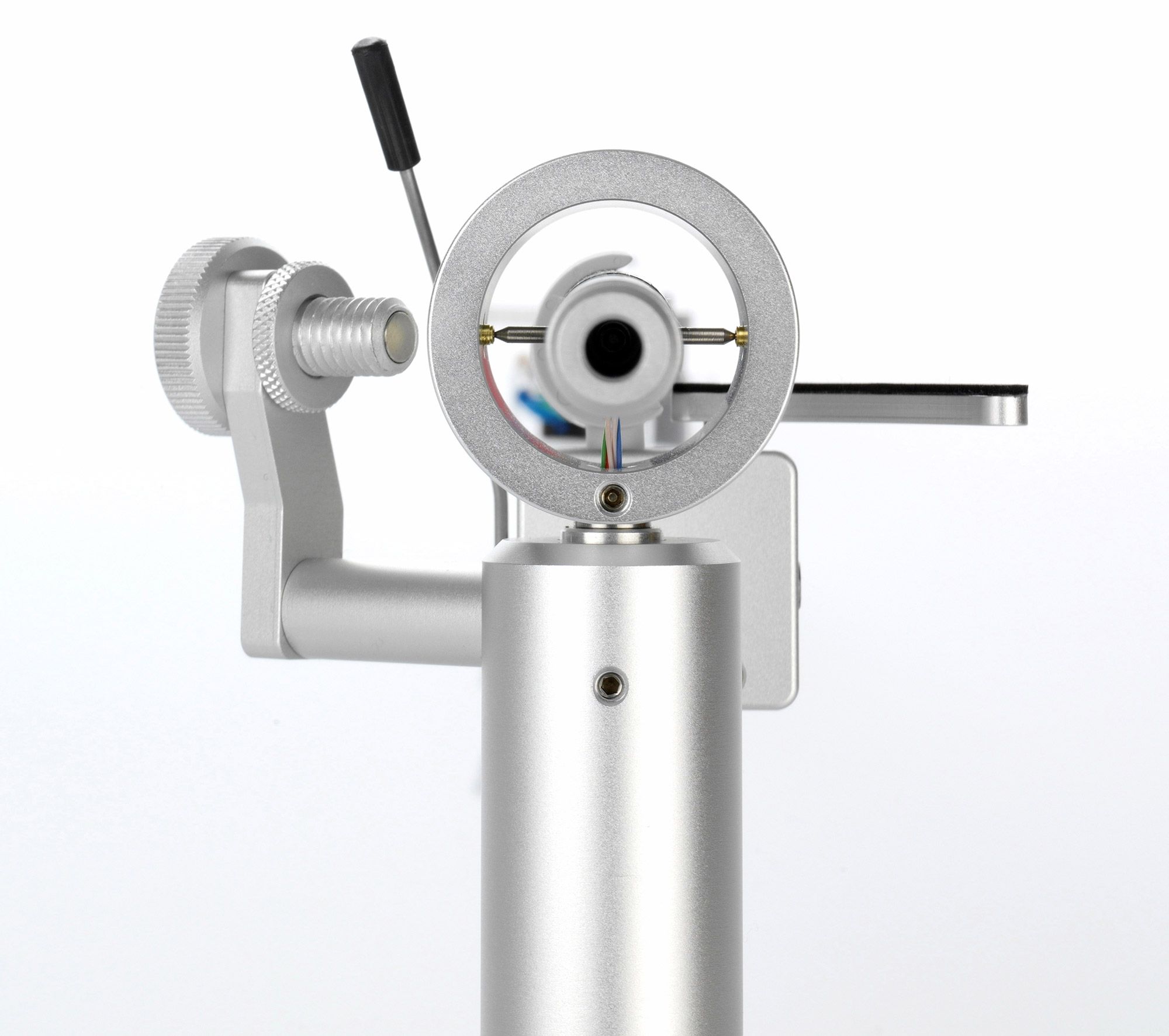

Technical close-up of the gimbal bearing of the silver clearaudio Satisfy Kardan tonearm from behind against a white background. At the centre, the circular bearing ring can be seen, in which the tonearm tube is mounted horizontally and vertically on needle bearings. To the left is the delicate mechanism for the magnetic anti-skating with a knurled adjustment screw. Inside the ring at the bottom, the fine, coloured tonearm cables (red, green, blue) are visible.
Technical close-up of the gimbal bearing of the silver clearaudio Satisfy Kardan tonearm from behind against a white background. At the centre, the circular bearing ring can be seen, in which the tonearm tube is mounted horizontally and vertically on needle bearings. To the left is the delicate mechanism for the magnetic anti-skating with a knurled adjustment screw. Inside the ring at the bottom, the fine, coloured tonearm cables (red, green, blue) are visible.
View of the precision bearing: The gimbal suspension of the clearaudio Satisfy Kardan with lateral, magnetic anti-skating adjustment.

Continuous direct wiring

The audio signal is routed without physical interruption directly from the cartridge through the entire tonearm to the phono preamplifier. This elaborate direct wiring is one of the special technical features of the Satisfy Kardan and is absolutely exceptional in this price range.

Intro

Aluminium or carbon.

Content

The Satisfy Kardan is available in silver or black aluminium as well as in carbon. All variants combine high stability with resonance-optimised material properties. The range is complemented by the Satisfy Kardan Signature, which is available in an elegant, completely black finish.

Intro

Close-ups

A macro shot of the bearing and anti-skating mechanism of the clearaudio Satisfy Kardan in the aluminium version. A knurled screw for magnetic adjustment of anti-skating is clearly visible.
Open image in lightbox

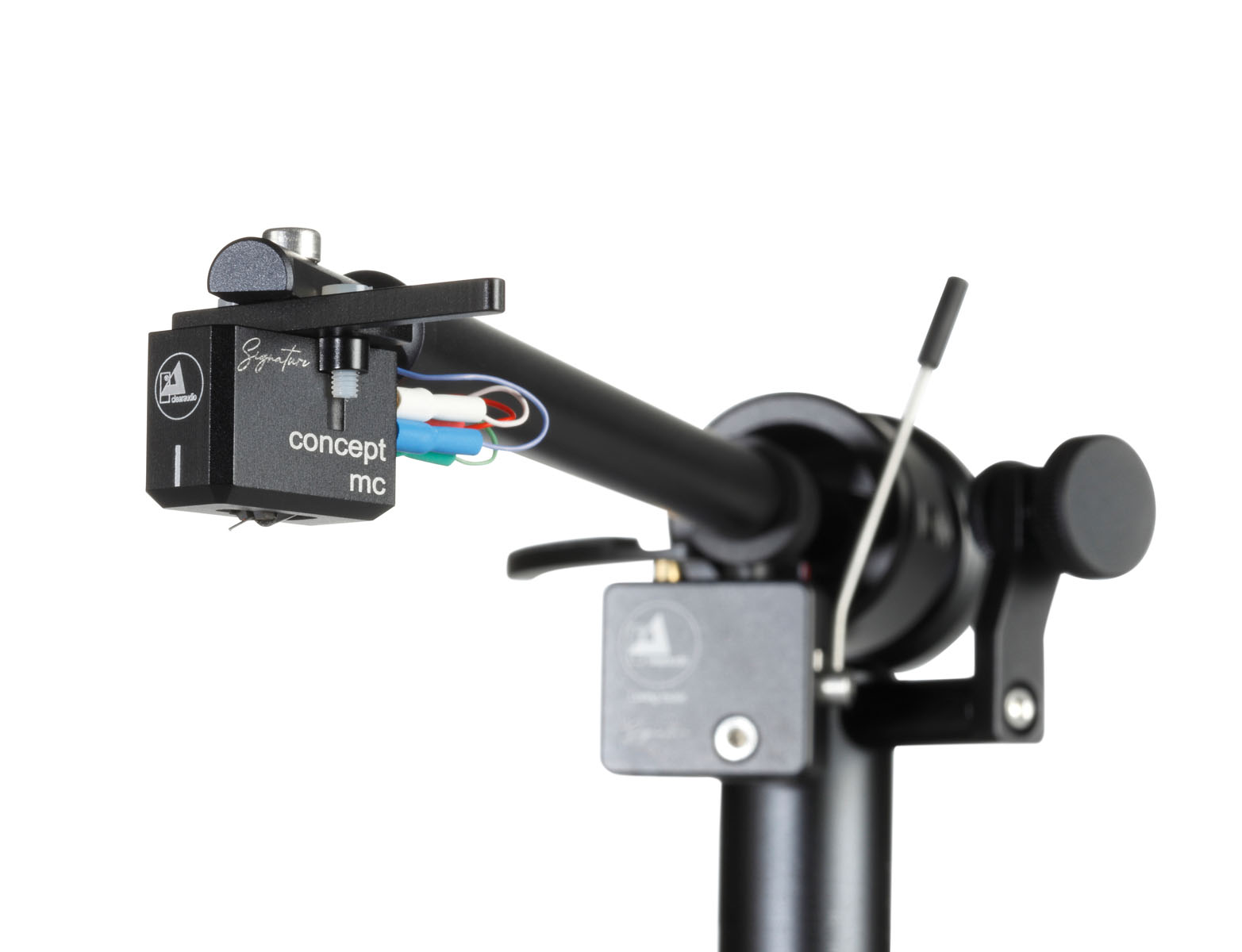

A detailed close-up from the front left perspective of a clearaudio Concept MC Signature phono cartridge mounted on a black headshell at the end of a turntable tonearm. The black cartridge displays the clearaudio logo and the text
Open image in lightbox

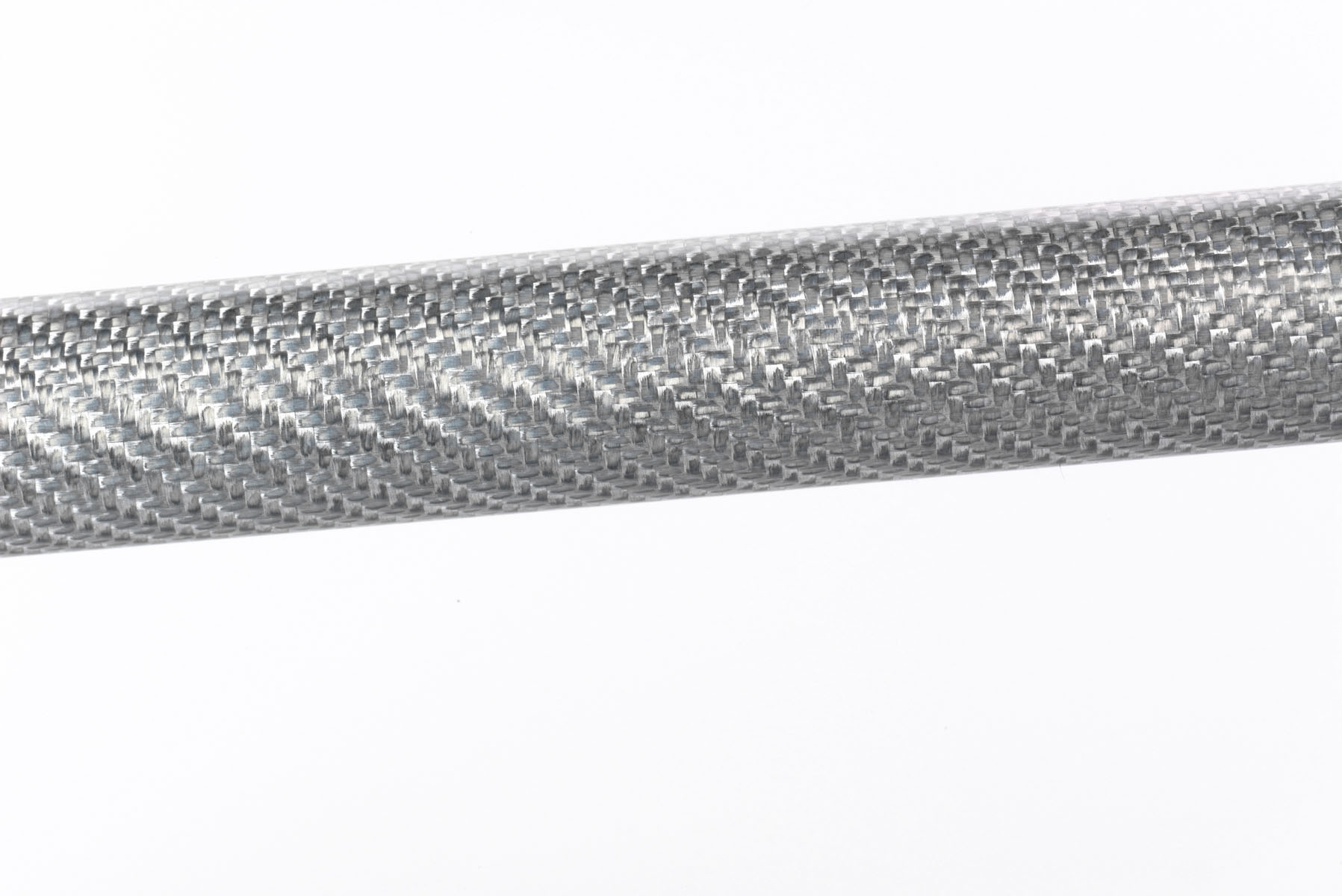

A macro photograph showing the fine, woven carbon structure of the clearaudio Satisfy Kardan Signature tonearm tube. The materiality is depicted in extremely fine detail.
Open image in lightbox

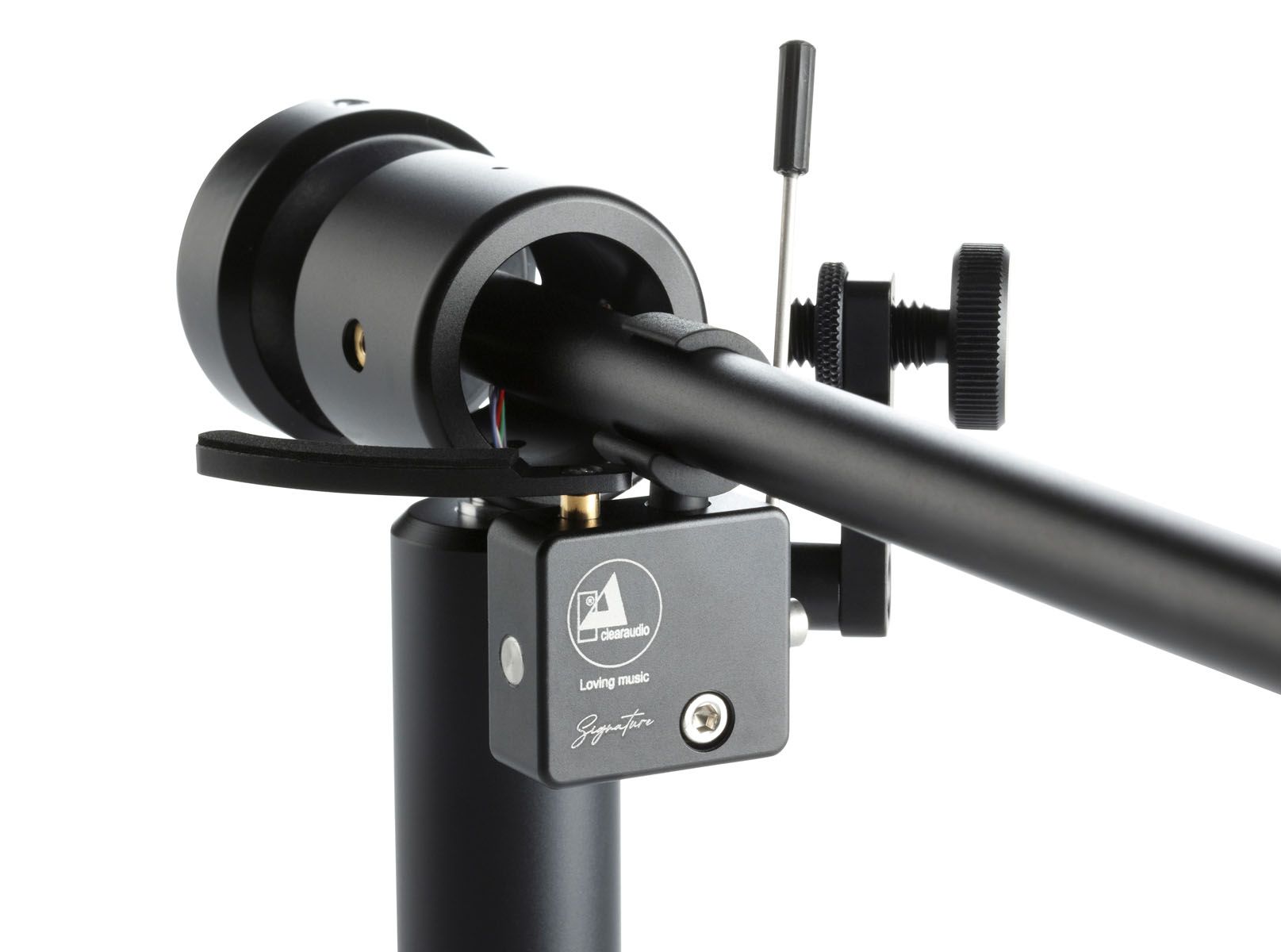

A technical close-up of the gimballed bearing and tonearm lift of a black high-end tonearm. The tonearm is mounted on a black cylindrical base. In the foreground is a rectangular black housing block beneath the tonearm tube, engraved with the Clearaudio logo and the text
Open image in lightbox
Intro

Specifications

DESIGN PRINCIPLE:
  • Radial tonearm
  • With magnetic anti-skating
MATERIAL: Aluminium (black/silver), stainless steel, carbon tonearm tube (black/silver)
ADJUSTABLE CARTRIDGES:

2.5 g – 17.0 g
OVERHANG: 17.12 mm
OVERALL LENGTH: 305 mm
EFFECTIVE LENGTH: 239.12 mm
MOUNTING DISTANCE:

222 mm (tonearm pivot to spindle)
OFFSET ANGLE: 24.02°
SIGNAL CABLE: 1.1 m clearaudio Direct Wire PLUS terminated with MPC RCA
WEIGHT: approx. 490 g (incl. counterweight)
MANUFACTURER’S WARRANTY:

2 years*
* Upon return of the completed warranty card to clearaudio within 14 days of purchase.
DESIGN PRINCIPLE:
  • Radial tonearm
  • With magnetic anti-skating
MATERIAL: Aluminium (black/silver), stainless steel, tonearm tube made of aluminium (black/silver)
ADJUSTABLE CARTRIDGES:

2.5 g – 17.0 g
OVERHANG: 17.12 mm
OVERALL LENGTH: 305 mm
EFFECTIVE LENGTH: 239.12 mm
MOUNTING DISTANCE:

222 mm (tonearm pivot to spindle)
OFFSET ANGLE: 24.02°
SIGNAL CABLE: 1.1 m clearaudio Direct Wire PLUS terminated with MPC RCA
WEIGHT: approx. 490 g (incl. counterweight)
MANUFACTURER’S WARRANTY:

2 years*
* If the completed warranty card is returned to clearaudio within 14 days of purchase.
