Compact entry point.

N1

The N1 is clearaudio’s entry into the world of MM cartridges: compact, powerful in sound and reduced to the essentials. Sound quality, workmanship and choice of materials remain clearly at clearaudio level.

Weight

12.5 g
(± 0.2 g)

Output voltage

~ 2.9 mV

Stable aluminium housing

The newly developed, anodised aluminium housing serves as a stable construction frame. With a balanced overall weight of 12.6 grammes, the N1 is suitable for light as well as heavier tonearms.

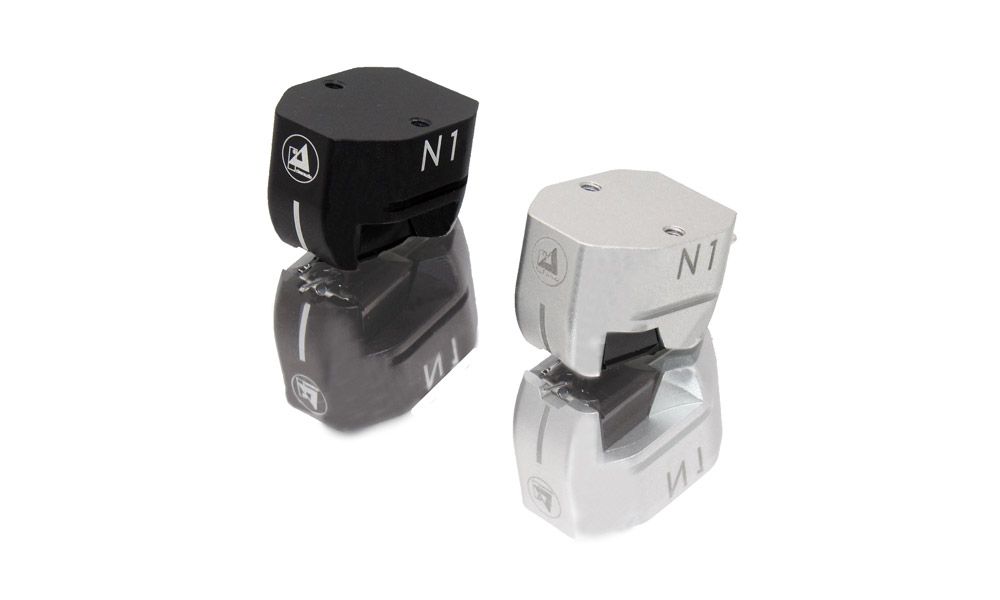

Studio photograph of the two colour variants of the Clearaudio N1 cartridge in matt black and silver side by side on a white, reflective surface.

Visual harmony: The clearaudio N1 is available in elegant black or sophisticated silver – perfectly matched to the design of the compass series.

Perfect for the compass

The N1 harmonises particularly well with the clearaudio compass turntable and can be visually matched to the tonearm and turntable in black or silver.

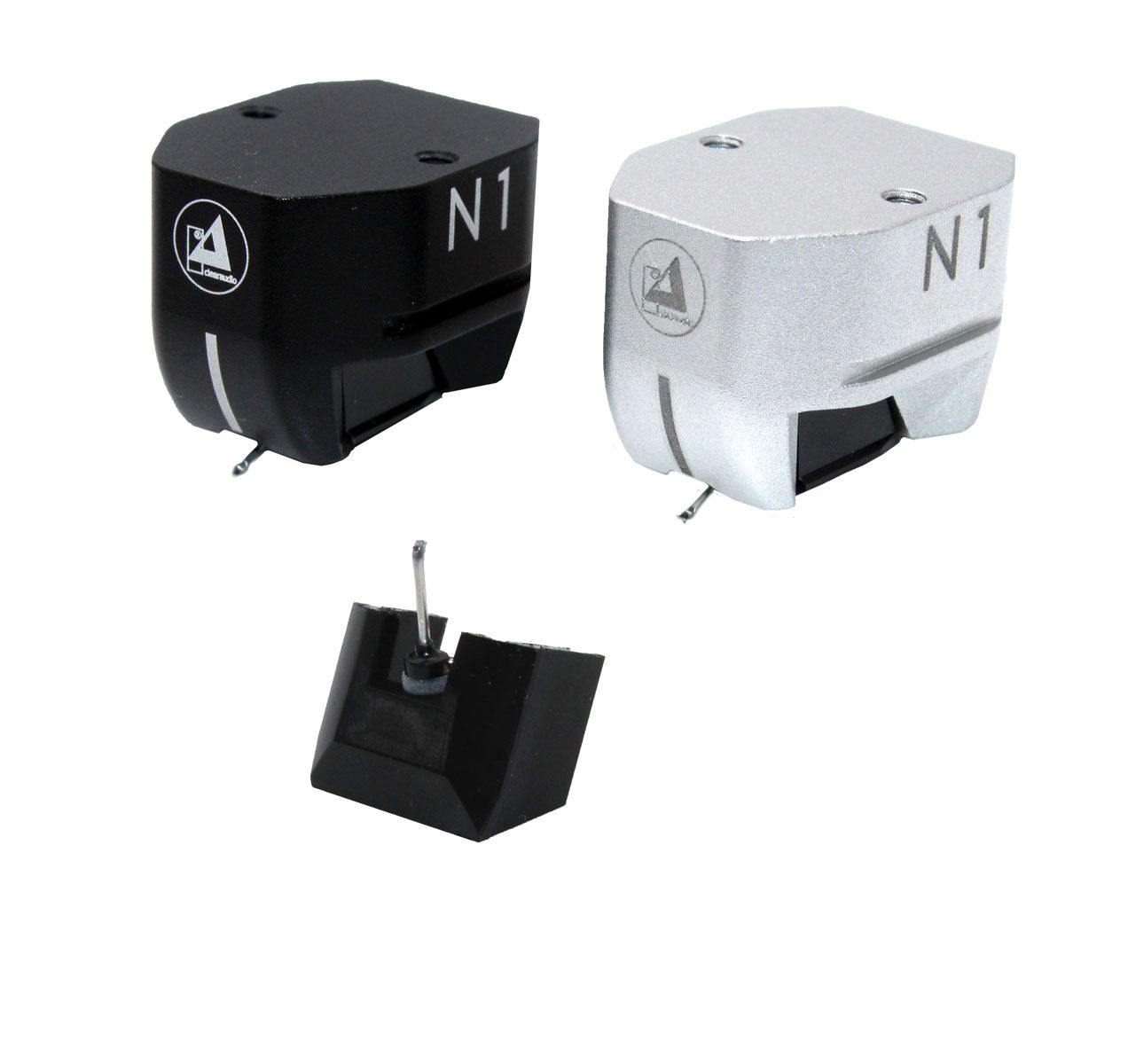

Product graphic of the clearaudio N1 cartridge in black and silver with separately shown, removable stylus carrier plug-in system.

Service-friendly concept: Thanks to the innovative plug-in system, the stylus carrier can be easily replaced in everyday use with just a few simple steps.

Easy stylus replacement

The innovative plug-in system for the stylus carrier enables quick and uncomplicated replacement – even when installed. This makes maintenance and replacement easier in everyday use.

Close-ups

Elegant black square product packaging for the clearaudio N1 cartridge on a white studio background.

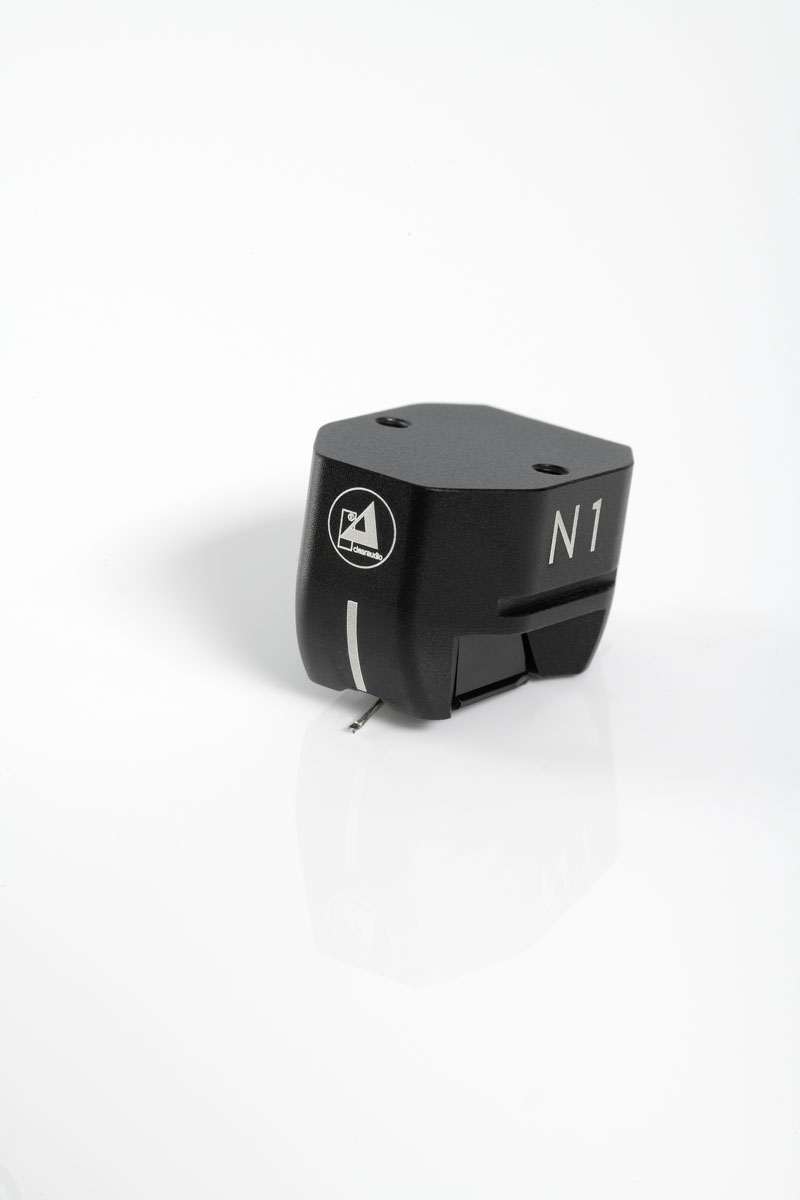

Studio photograph of the clearaudio N1 moving magnet cartridge in the black version with fine N1 inscription, shown against a plain background.

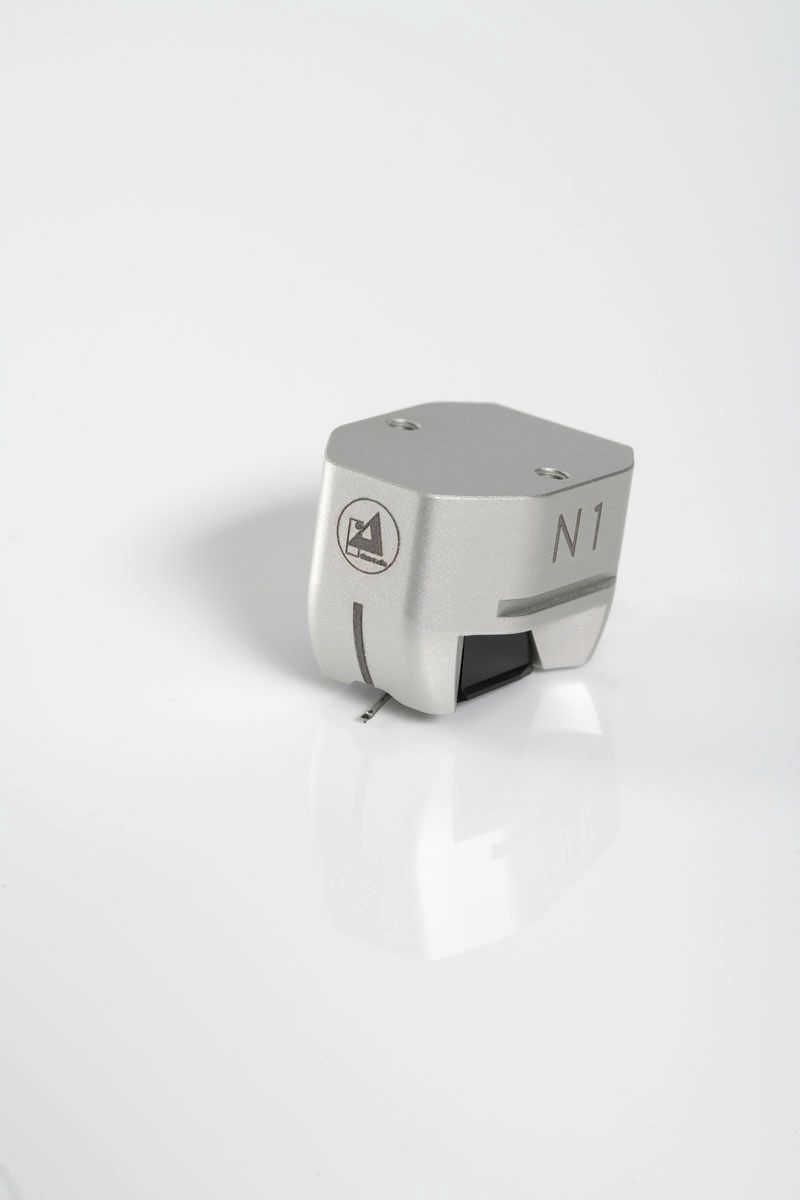

Studio photograph of the clearaudio N1 cartridge in silver-grey metallic finish, isolated on a white background.

Specifications

Technical Data – N1

Total mass:	12.5g (± 0.2g)
Frequency response:	20Hz – 20kHz
Output voltage (1kHz, 5cm/s):	~ 2.9mV
Channel separation (1kHz):	20dB
Channel balance (1kHz):	≤ 2dB
Tracking ability:	80μm
Recommended tracking force:	2.2g (± 0.3g)
Coil impedance (1kHz):	0.66kΩ
Coil inductance:	400mH
Load resistance:	47kΩ
Load capacitance:	100pF
Cantilever / stylus shape:	Aluminium / elliptical
Compliance:	15μ/mN
Cartridge body:	Aluminium
Manufacturer’s warranty:	2 years
