Q: Recommended Package Combinations for concept Signature

Cartridge Optional with all MM cartridges, MC cartridges from concept MC to Talisman V2 Gold Tonearm concept to Profiler Electronics nano phono V2 / smart phono V2, Professional Power 12 V / smart power 12 V

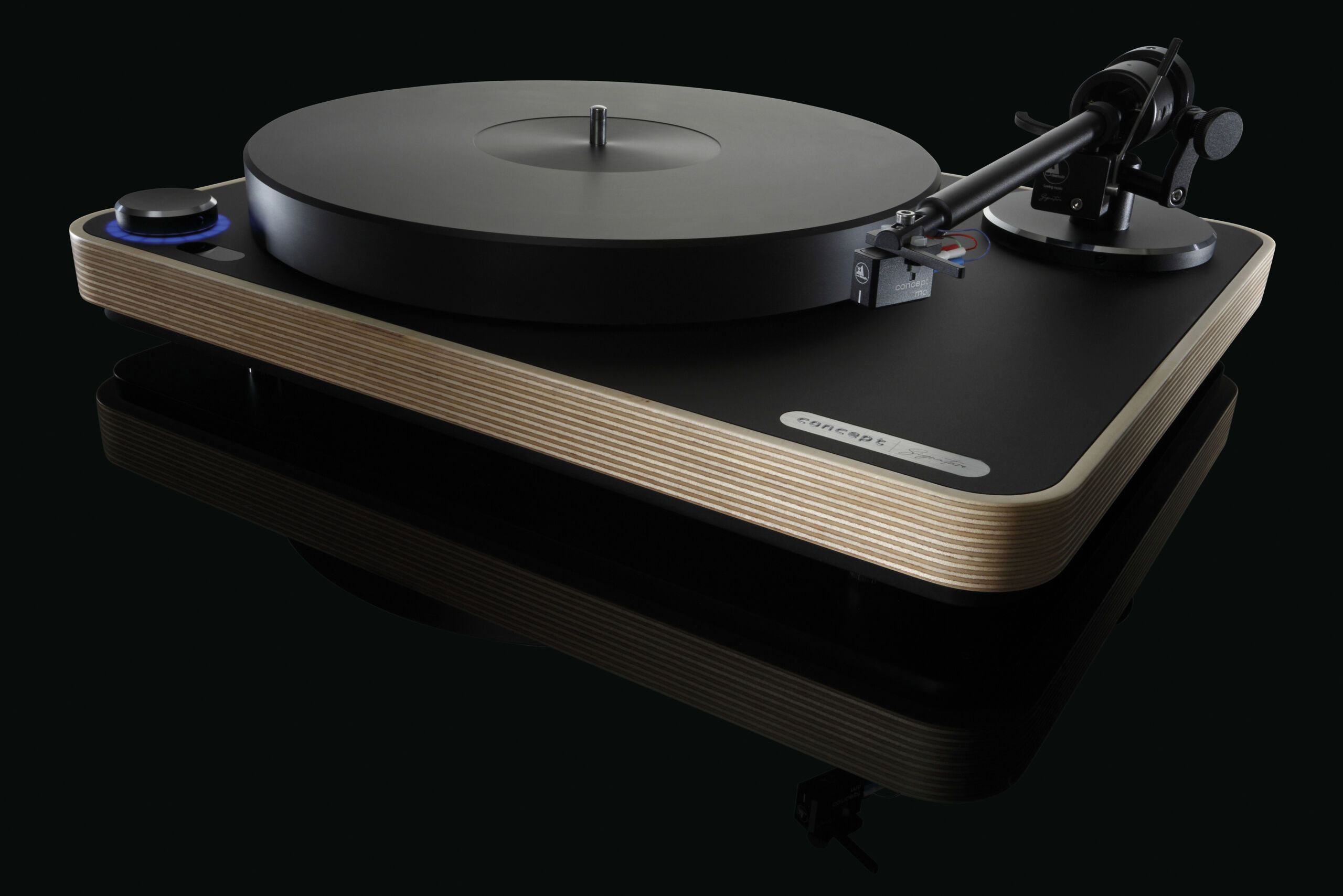

The concept Signature succeeds its enormously successful predecessor concept from 2020. Despite numerous improvements and developments, the core idea remains: a turntable that delivers performance and design far beyond its price range.

Weight

Approx. 7.5 kg
(incl. tonearm and cartridge)

Dimensions

Width: 420 mm
Depth: 350 mm
Height: 125 mm
(incl. tonearm)

Speed

33 ⅓, 45 rpm

Material/Colour

Medium-density fibreboard:
silver / black

Compressed solid wood layer:
wood / dark wood

Solid yet elegant

The chassis is manufactured either from medium-density fibreboard or birch multiplex. The surface of the turntable consists of specially satin-finished plastic. This composition minimises resonances and ensures a high-quality appearance.

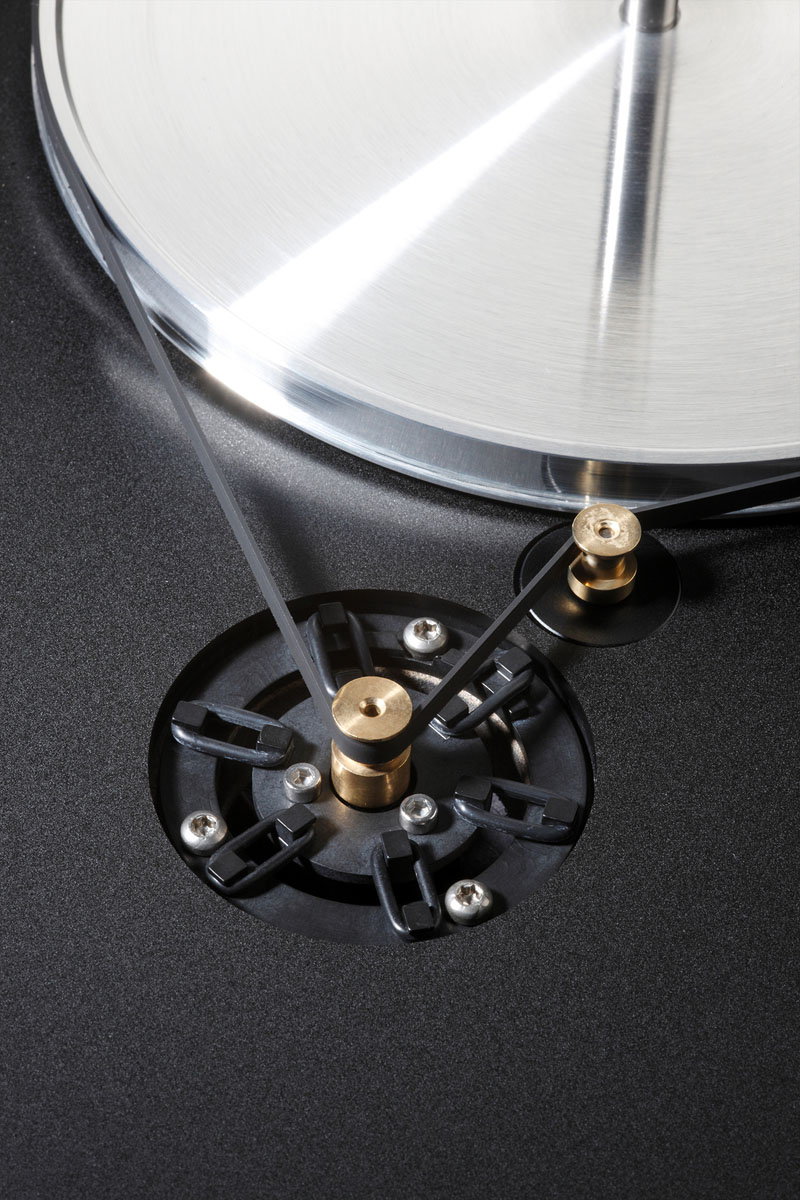

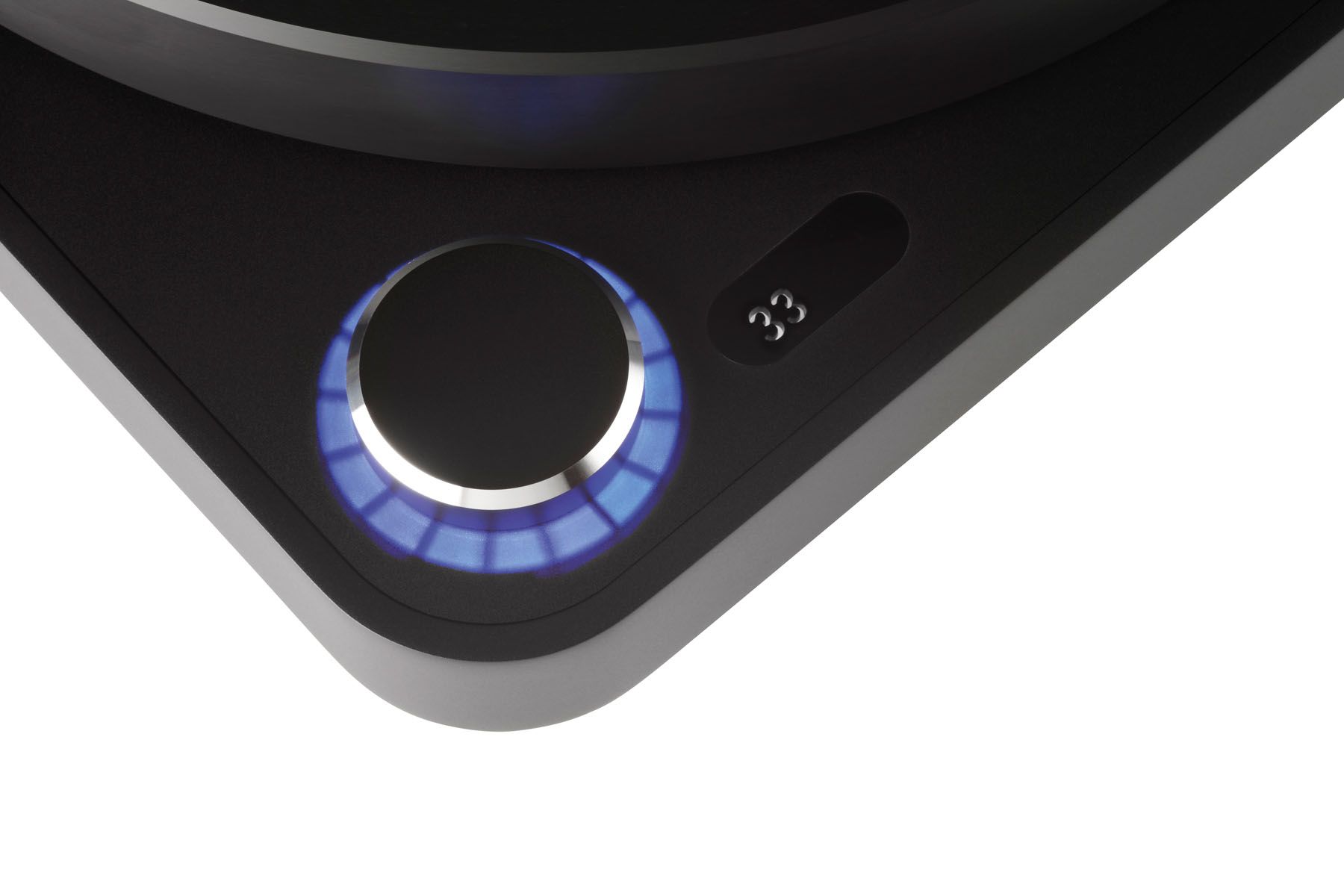

The platter is driven by a ground flat belt from a completely decoupled DC motor to minimise the transmission of interference noise. The newly designed surface with illuminated touch control allows intuitive operation of the turntable and sets elegant design accents.

Tacho-Speed-Control

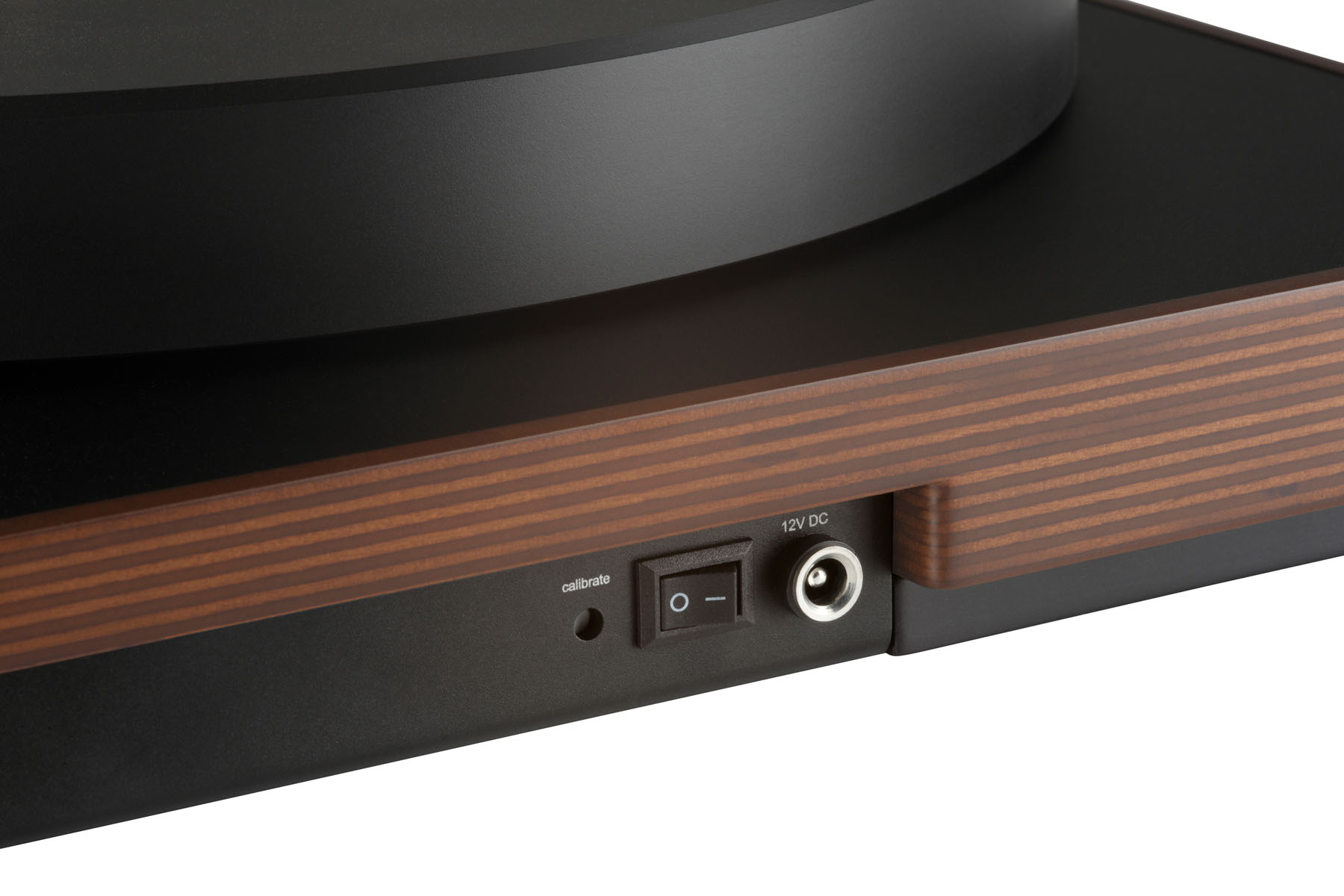

The completely newly developed Tacho-Speed-Control – TSC for short – constantly monitors the rotation speed and provides real-time feedback to the control electronics. This allows it to react immediately to changes, such as decreasing belt tension, friction in the platter bearing or temperature fluctuations. For consistently perfect results, the TSC system performs automatic calibration. Alternatively, calibration can be triggered manually by pressing a button on the rear of the turntable.

Full modularity

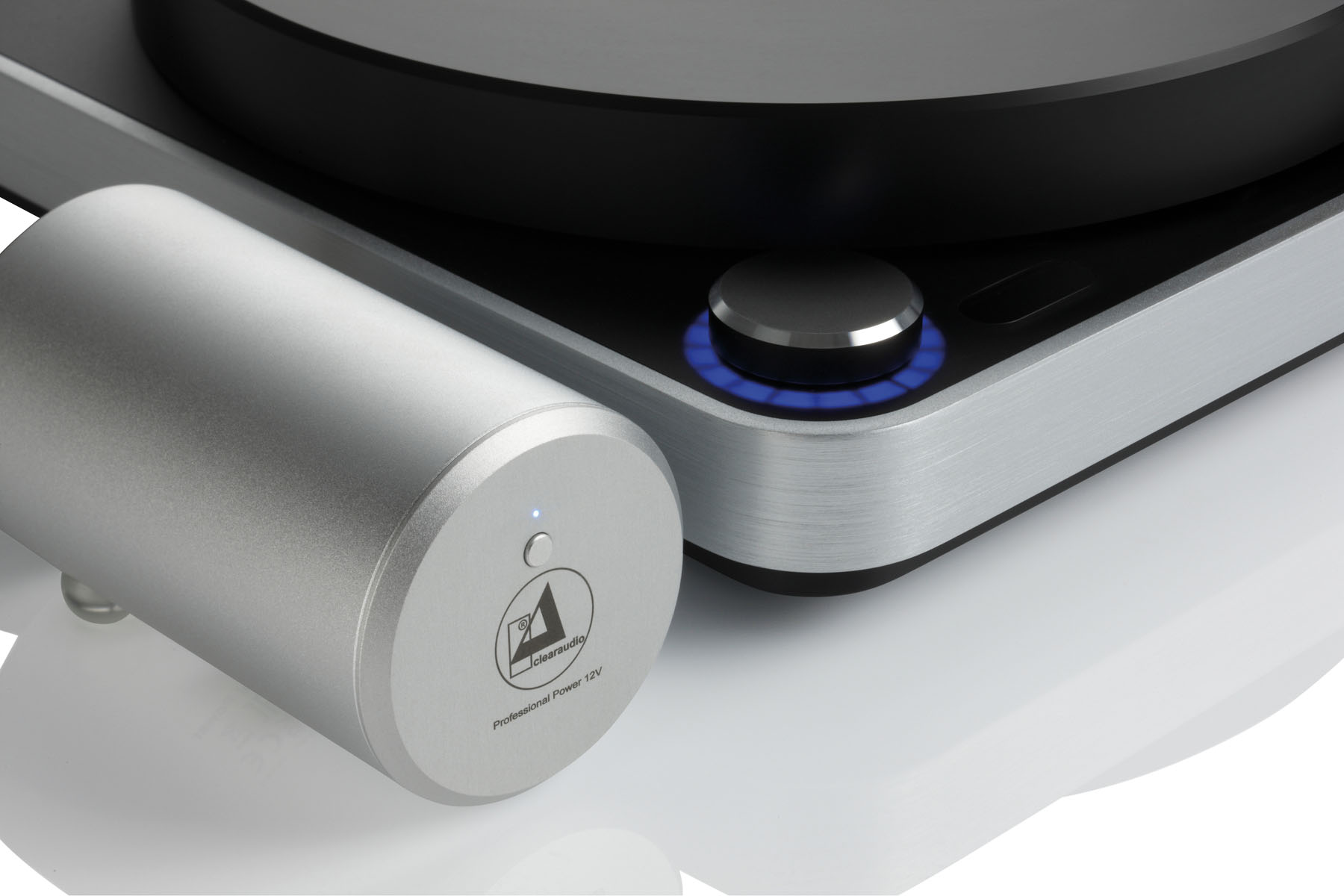

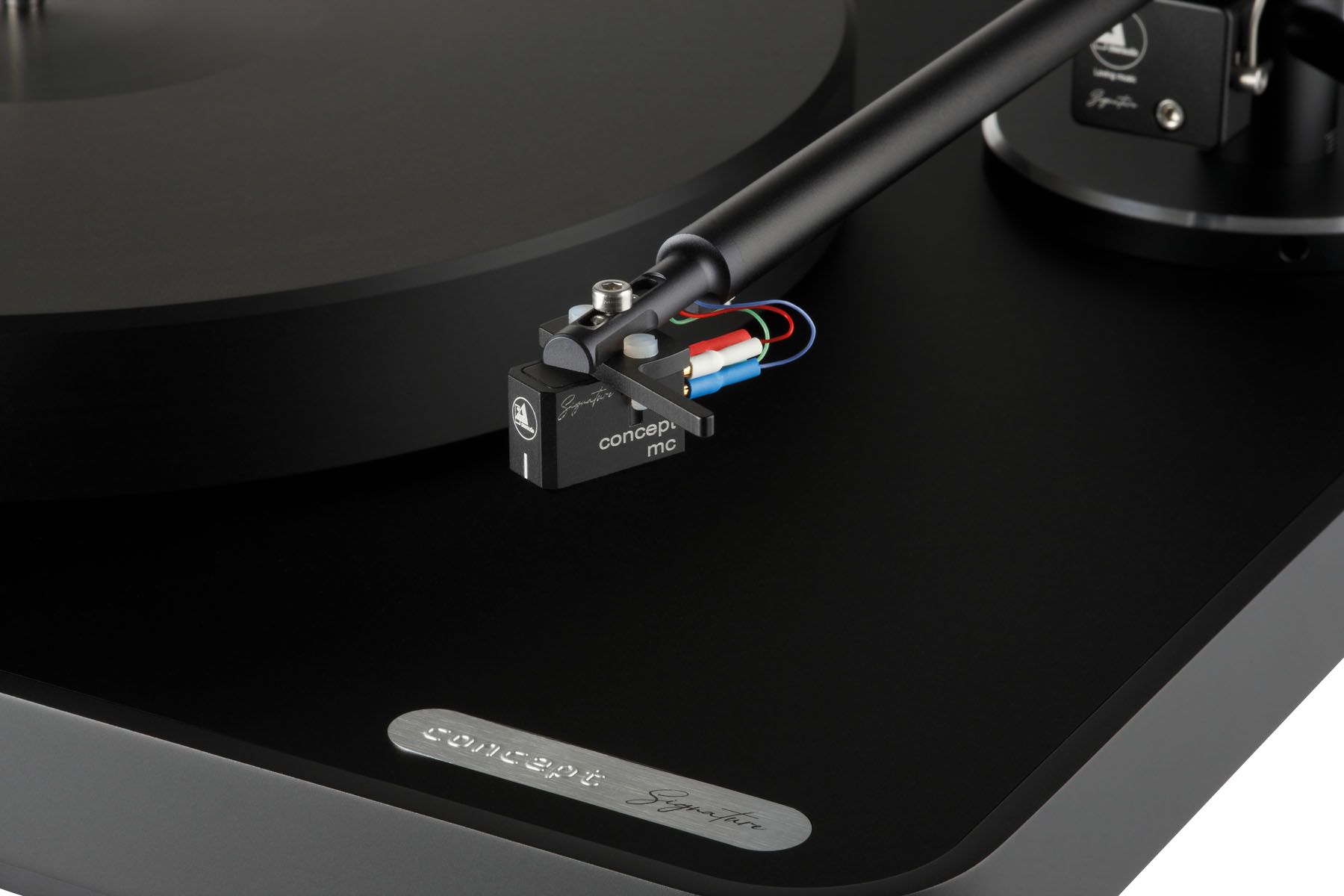

The wide range of clearaudio tonearms and cartridges leaves nothing to be desired in terms of modularity. Perfect combinations for the concept Signature turntable are all MM cartridges, all MC cartridges from concept mc to Talisman V2 Gold, as well as all tonearms from concept to Profiler. Also recommended are the concept clamp, a specially designed acrylic dust cover, as well as nano phono V2 / smart phono V2 phono preamplifier or one of the two upgrade power supplies Professional Power 12V or smart power 12V.

Video Presentation I

concept Signature

Close-ups

Specifications

Technical Data – concept Signature

CONSTRUCTION PRINCIPLE:	Resonance-optimised drive unit Top plate made of specially satin-finished plastic Drive unit body made of medium-density fibreboard (silver / black) or high-pressure compressed solid wood layers (wood / dark wood) Base plate made of medium-density fibreboard Height-adjustable drive unit feet
SPEED RANGE:	33 ⅓, 45 rpm
DRIVE:	Decoupled and extremely smooth-running 12 volt DC motor, Drive with ground flat belt Plug-in power supply designed for worldwide use for all mains and mains frequencies. “IMS light – Innovative Motor Suspension” (Suspension of the motor using O-rings) TSC” Tacho speed control (speed monitoring) Automatic compensation of friction and temperature changes on platter bearing and belt
BEARING:	Polished and hardened steel axle in a bronze bushing, runs on a Teflon mirror.
PLATTER:	Solid 30 mm platter made of high-density technical plastics with excellent dimensional stability / CNC precision-turned aluminium sub-platter.
WOW AND FLUTTER:	± 0.05 %
POWER CONSUMPTION:	Max. power consumption: 3.6 watts In operation: 1.92 watts Standby: 0.74 watts Switched off: 0.0 watts (Set toggle switch on rear of unit to “0”)
WEIGHT:	approx. 7.5 kg (incl. tonearm and cartridge)
DIMENSIONS (W/D/H):	approx. 420 × 350 × 125 mm (with tonearm)
MANUFACTURER’S WARRANTY:	2 years* To claim the full clearaudio warranty (two years for concept Signature), please send us the enclosed warranty card correctly and completely filled in within two weeks or register the warranty online at https://clearaudio.de/de/service/registration.php, otherwise only the statutory warranty can be taken into account. Only if the product has been returned in its original packaging can clearaudio guarantee the warranty period of 2 years. * If the warranty card is returned within 14 days.
