Stable power supply.

Professional Power 12V

The Professional Power 12V is a transformer-based and stabilised 12-volt direct current supply for clearaudio turntables in the concept and Performance DC series.
Icons and features section

Weight

Approx. 813 g

Power supply

110 V AC, 60 Hz, max. 200 mA (slow-blow)

240 V AC, 50 Hz, max. 200 mA (slow-blow)

Dimensions

Width: 73 mm
Depth: 145 mm
Height: 76 mm

Material/colour

Aluminium in silver or black

Content

Enhanced filtering

The power supply offers enhanced filtering and sufficient capacity for clean, consistent motor performance. The purified analogue power source provides extended reserves for this purpose.

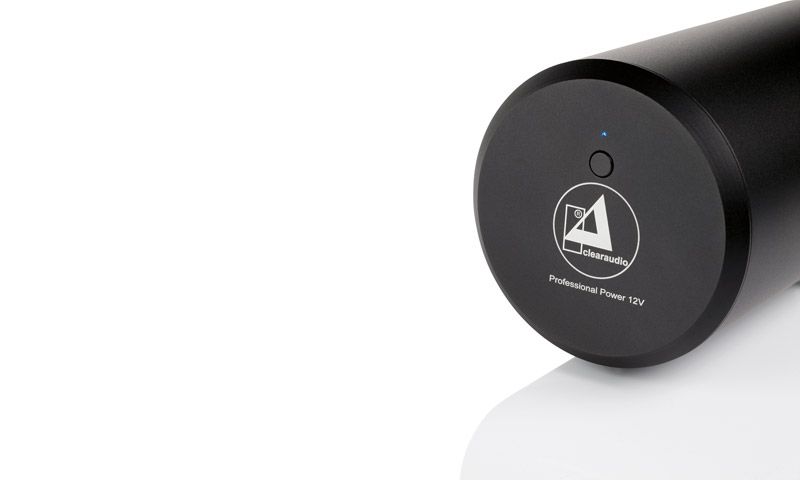

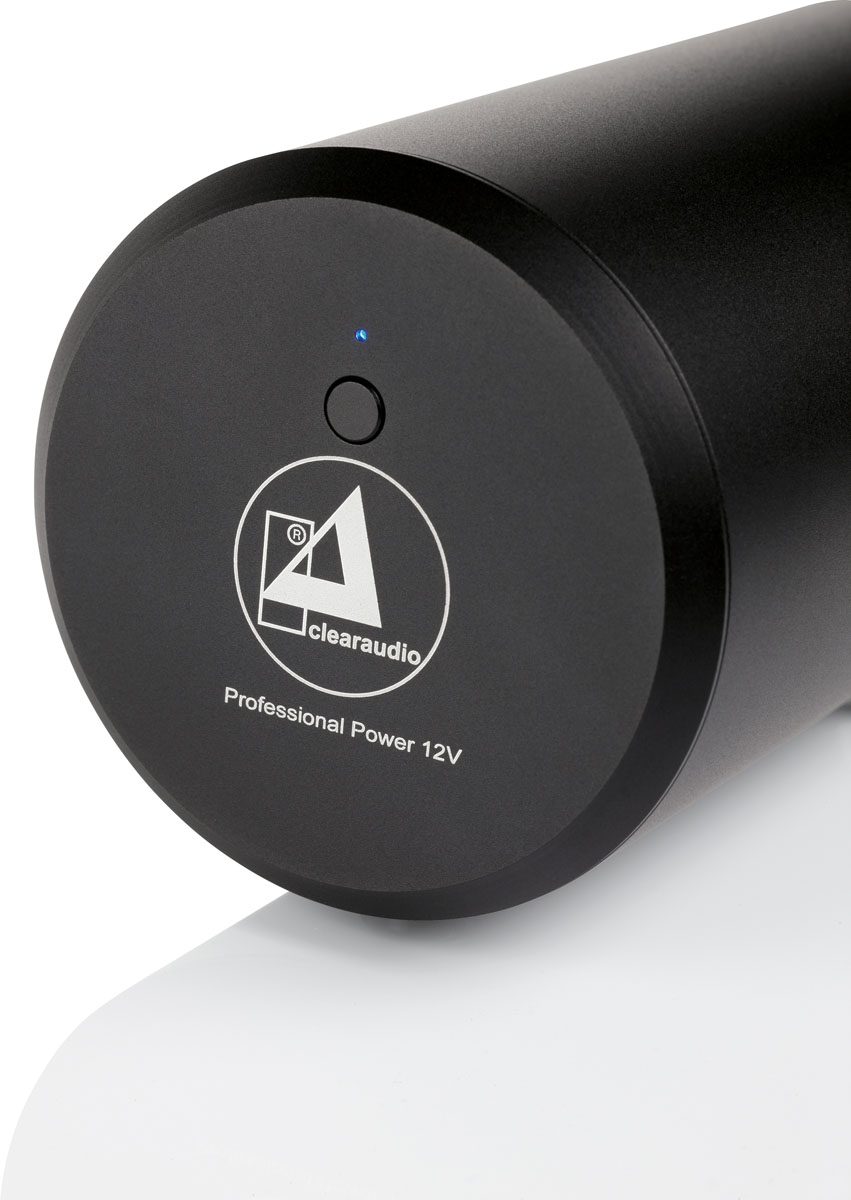

Close-up of the round front panel of the cylindrical, black clearaudio Professional Power 12V power supply, featuring the brand logo and a small blue LED on a white background.
Close-up of the round front panel of the cylindrical, black clearaudio Professional Power 12V power supply, featuring the brand logo and a small blue LED on a white background.

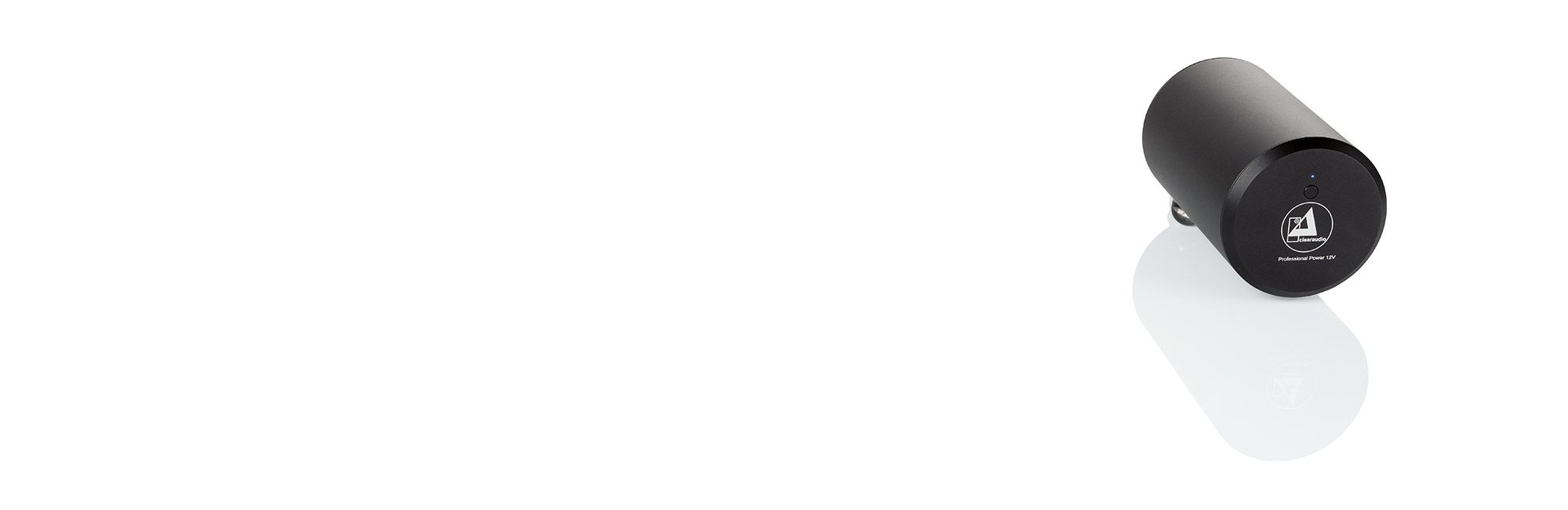

The clearaudio Professional Power 12V power supply in a black enclosure.

Between standard and smart power

The Professional Power 12V was developed to bridge the gap between the standard power supply and the smart power 12V.

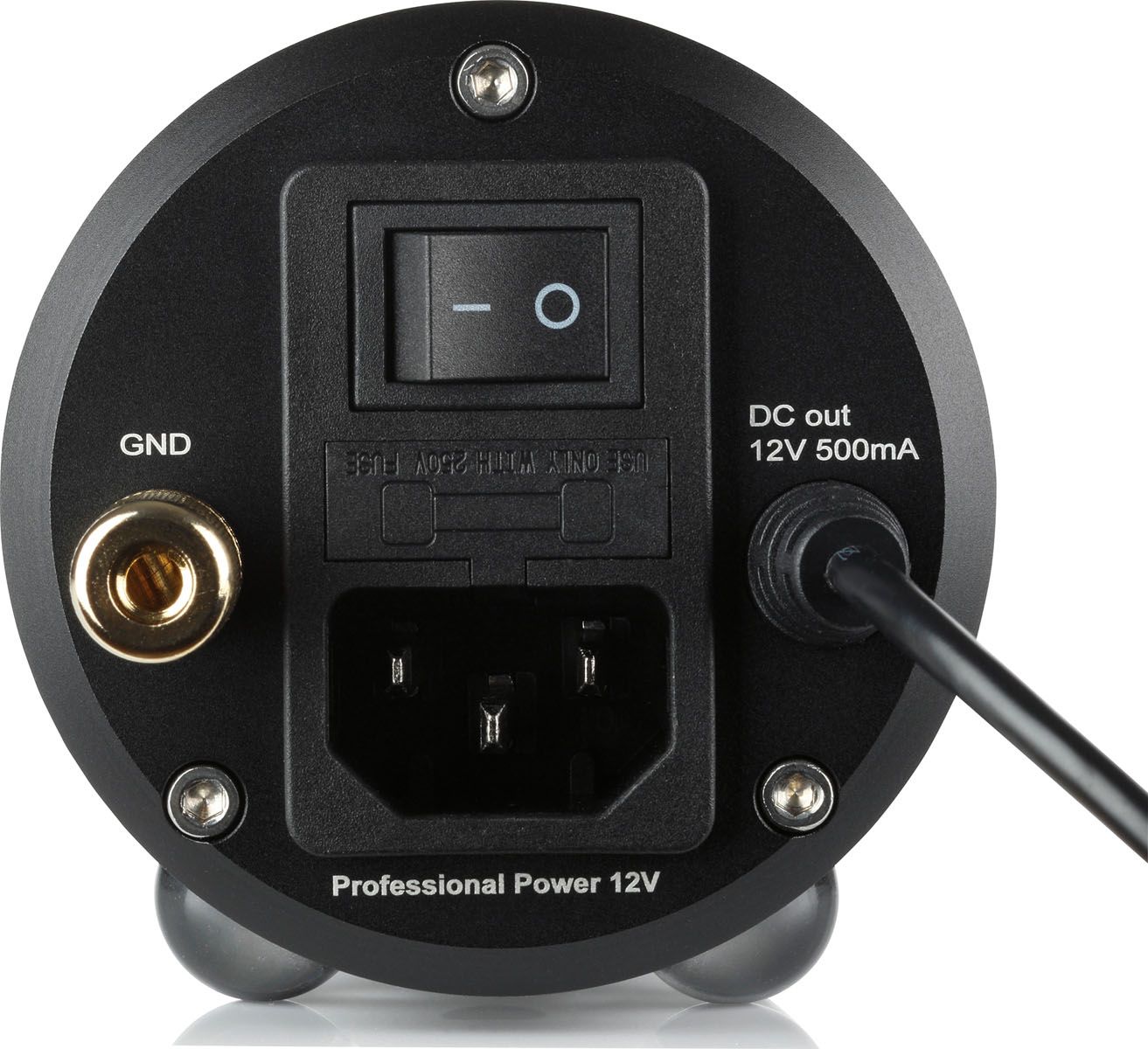

Rear view of the round clearaudio Professional Power 12V power supply with power switch, IEC power connector, gold-plated ground terminal (GND), and DC output cable.
Rear view of the round clearaudio Professional Power 12V power supply with power switch, IEC power connector, gold-plated ground terminal (GND), and DC output cable.
The ports on the back of the Professional Power 12V.

Resonance-optimised transformer

Professional electrical components and a resonance-optimised transformer are designed to prevent mechanical resonances from being transmitted via the housing.

Intro

Aluminium in silver or black.

Content

The housing is made of aluminium and is available in silver or black. On the output side, the Professional Power 12V delivers 12 volts at a maximum of 500 milliamps.

Intro

Close-ups

Open image in lightbox
Open image in lightbox
Open image in lightbox
Rear view of the round clearaudio Professional Power 12V power supply with power switch, IEC power connector, gold-plated ground terminal (GND), and DC output cable.
Open image in lightbox
Intro

Specifications

POWER SUPPLY:
  • 110 V AC, 60 Hz, max. 200 mA (slow-blow)
  • 240 V AC, 50 Hz, max. 200 mA (slow-blow)
OUTPUT: 12V, max. 500 mA; electronically protected (slow-blow)
POWER CONSUMPTION IN OPERATION
(LED ON):
  • 0 rpm > 1.1 watts
  • 33.3 rpm > 1.4 watts
  • 45 rpm > 1.5 watts
  • 78 rpm > 1.7 watts
  • Standby (LED off) = 1 watt

POWER CONSUMPTION WHEN
SWITCHED OFF:
  • 0.0 watts (toggle switch on rear panel in “0” position)
  • Residual ripple = 50 μVSS
WEIGHT: approx. 813 g
DIMENSIONS (W × D × H): 73 × 145 × 76 mm
WARRANTY:

2 years*
* If the completed warranty card is returned to clearaudio within 14 days of purchase.
