Nothing disturbs its composure.

Nano Phono V2 & Nano Phono Headphone V2

The nano phono V2 remains composed even when subjected to external interference. The compact phono preamplifier is designed for low-noise signal processing and is suitable for both moving-magnet and moving-coil cartridges.
Icons and features section

Weight

500 g
(preamplifier and power supply)

Max. output voltage

10 V RMS (1 kHz),
adjustable 0-10

Dimensions

Width: 85 mm
Depth: 106 mm
Height: 25 mm

Material/Colour

Aluminium Silver and Black

Content

Carefully selected

The meticulously selected SMD components are hand-assembled in Erlangen and tested multiple times. The effort pays off: the nano phono V2 achieves a signal-to-noise ratio of up to 80 decibels.

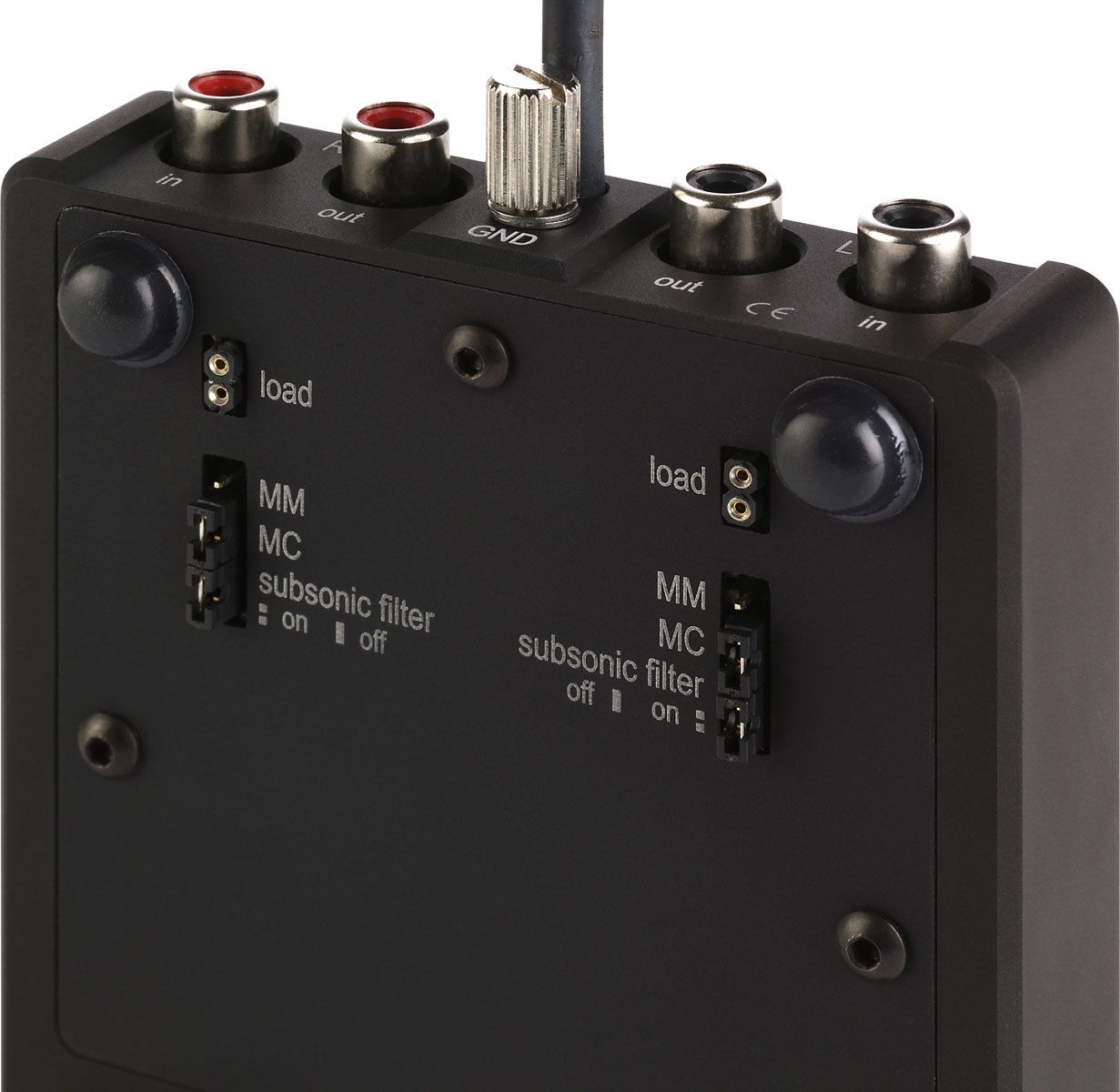

Close-up view of the bottom of a black Clearaudio Nano phono preamp with small DIP switches for MM/MC selection, the subsonic filter, and the impedance load.
Close-up view of the bottom of a black Clearaudio Nano phono preamp with small DIP switches for MM/MC selection, the subsonic filter, and the impedance load.
Convenient DIP switches on the bottom for optimal system configuration.

Flexibly adjustable

The input impedance can be adapted to the cartridge being used. This allows different MM and MC systems to deliver their sonic potential without unnecessary compromise.

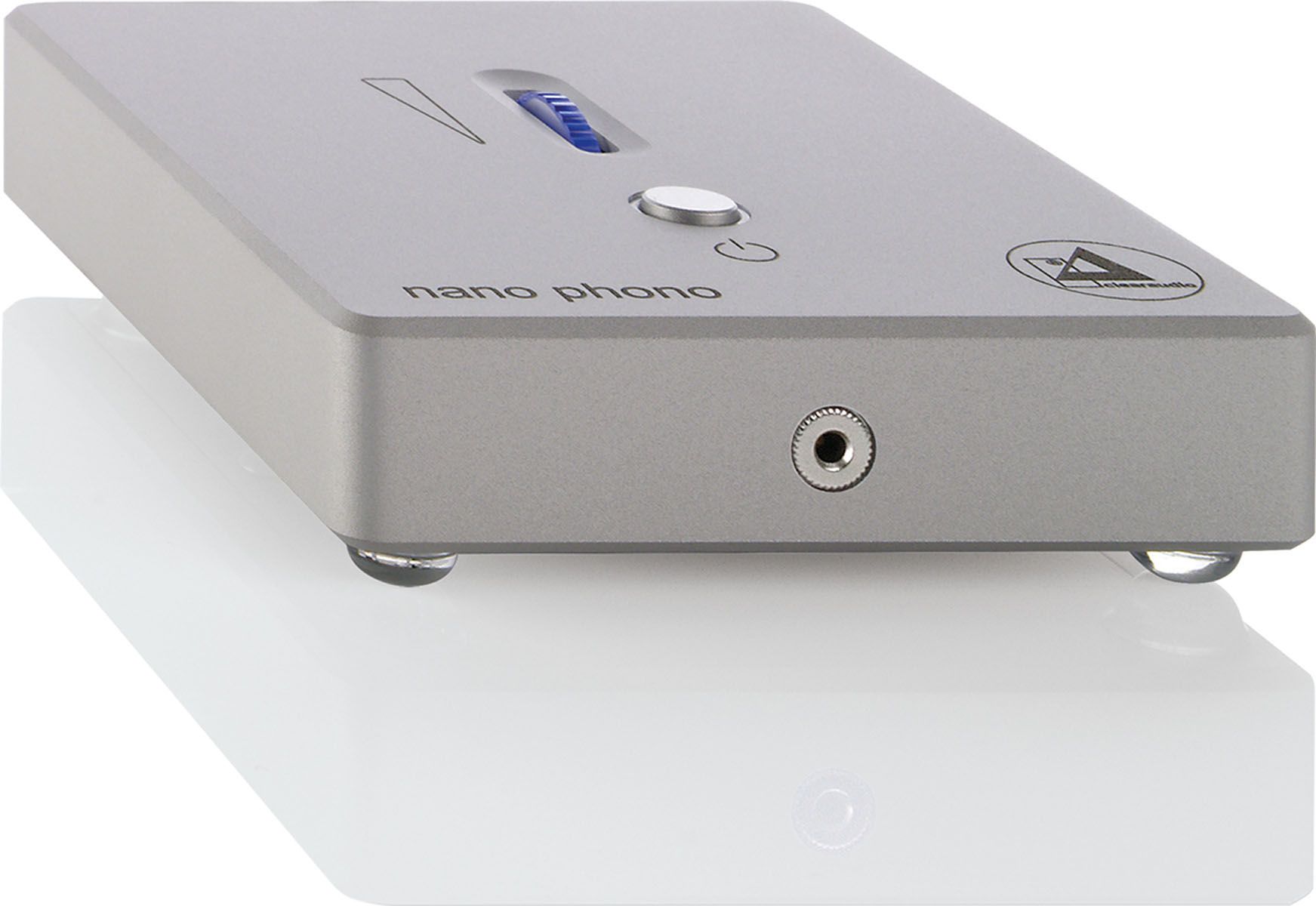

A perspective view of the silver aluminum housing of the clearaudio nano phono headphone V2 amplifier, featuring a headphone output on the front and a blue-illuminated control knob on the top.
A perspective view of the silver aluminum housing of the clearaudio nano phono headphone V2 amplifier, featuring a headphone output on the front and a blue-illuminated control knob on the top.
The compact clearaudio nano phono headphone V2 with a front-panel headphone jack.

With headphone output

The nano phono headphone V2 complements the solid aluminium housing with a powerful headphone output. This enables undisturbed listening directly at the phono preamplifier.

Intro

Close-ups

Open image in lightbox
Open image in lightbox
A perspective view of the silver aluminum housing of the clearaudio nano phono headphone V2 amplifier, featuring a headphone output on the front and a blue-illuminated control knob on the top.
Open image in lightbox
Close-up view of the bottom of a black Clearaudio Nano phono preamp with small DIP switches for MM/MC selection, the subsonic filter, and the impedance load.
Open image in lightbox
Intro

Specifications

MODE:
  • MM / MC switchable with jumper (on underside)
  • Subsonic filter switchable with jumper (on underside)
GAIN AT 1 kHz:
  • 34 dB (MM operation)
  • 54 dB (MC operation)
INPUT IMPEDANCE:
  • 47 kΩ / 220 pF / MM operation
  • Individual / MC operation
RIAA ACCURACY:

± 0.4 dB @ 20 Hz – 50 kHz
DISTORTION:

< 0.04 %
SIGNAL-TO-NOISE RATIO:
  • 81 dB (A) (MM operation)
  • 70 dB (A) (MC operation)
OVERLOAD MARGIN:

18 dB / MC
MAXIMUM OUTPUT VOLTAGE: 10 V RMS (1 kHz)
CUTTING CHARACTERISTIC EQUALISATION:

According to RIAA (time const.: 75 μs / 318 μs / 3180 μs)
CHANNEL SEPARATION: > 80 dB at 1 kHz, opposite channel short-circuited
OUTPUT IMPEDANCE: 75 Ω

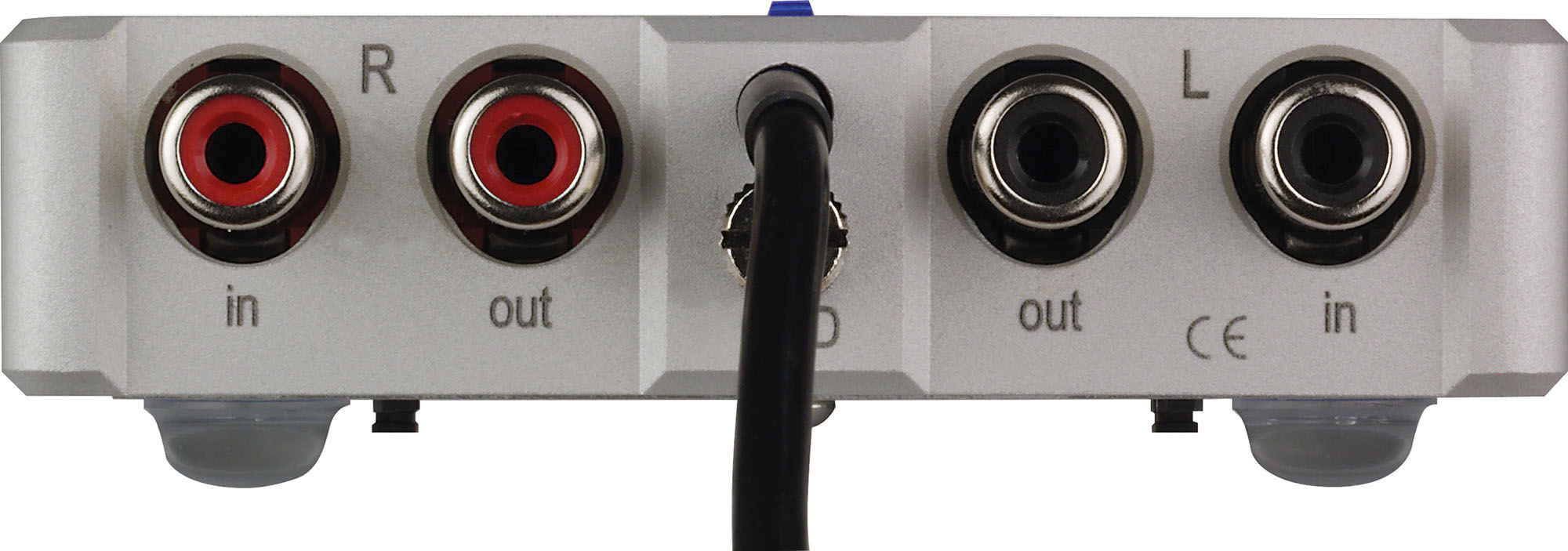

INPUTS: unbalanced (RCA)
OUTPUTS: unbalanced (RCA)
optional headphone output (jack: 3.5 mm)
POWER CONSUMPTION:
  • Max. power consumption: 2.3 watts
  • In operation: 2.3 watts
  • Standby mode: < 0.3 watts
  • Switched off: 0.0 watts
POWER SUPPLY: ± 18 V DC / 300 mA (external plug-in power supply, plastic housing)
WEIGHT: approx. 500 g (preamplifier and power supply)
DIMENSIONS (W/D/H): approx. 85 × 106 × 25 mm
MANUFACTURER’S WARRANTY:

3 years*
* Upon return of the completed warranty card to clearaudio within 14 days of purchase.
