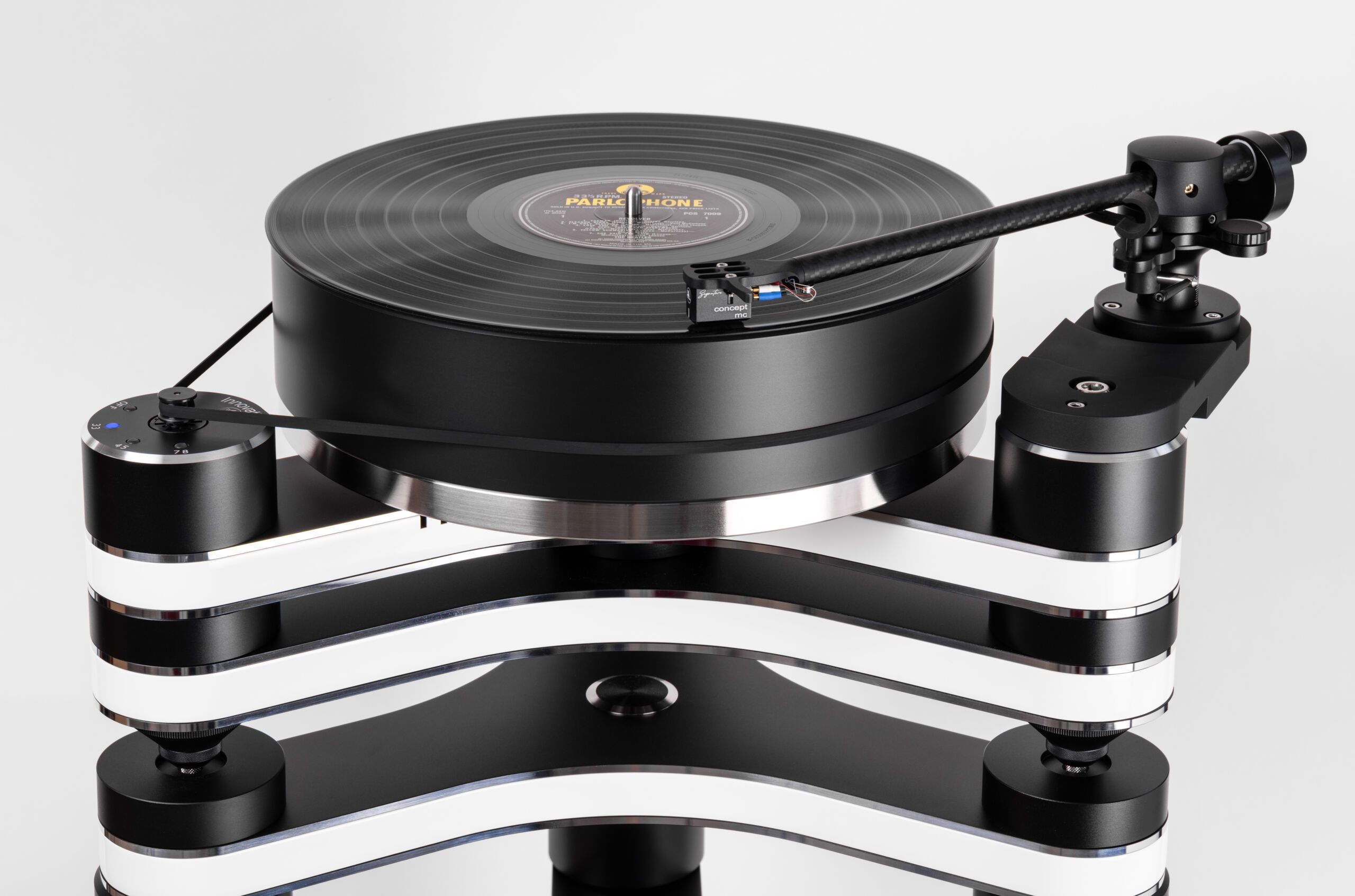

The Innovation Revolver Edition
combines the proven high-end technology of the
Innovation turntable with an exclusive special
design created to celebrate the 60th anniversary
of the Beatles’ landmark album Revolver. Its newly
developed chassis, crafted from stainless steel and
composite stone, delivers exceptional resonance
control while showcasing a striking monochrome
aesthetic inspired by Klaus Voormann’s legendary
album artwork..

Weight

Approx. 24 kg
(without tonearm and power supply)

Dimensions

Width: 460 mm
Depth: 485 mm
Height: 220 mm
(with tonearm base, without tonearm)

Speed

33 ⅓, 45 and 78 rpm

Material/Colour

Composite Stone & Aluminium

Exclusive Chassis Design

Developed exclusively for the Innovation Revolver Edition, the completely redesigned chassis combines precision-engineered composite stone with stainless steel to deliver outstanding resonance control and exceptional mechanical stability. Its striking monochrome design draws inspiration from the iconic visual language of the legendary Revolver album artwork by Klaus Voormann, transforming the turntable into a truly exceptional collector’s piece.

Sophisticated turntable construction

The 85-millimetre thick platter consists of 70 millimetres of high-density plastic and a 15-millimetre stainless steel flywheel platter. The construction is mounted on the CMB Ceramic Magnetic Bearing developed and patented by clearaudio.

Conveniently expandable

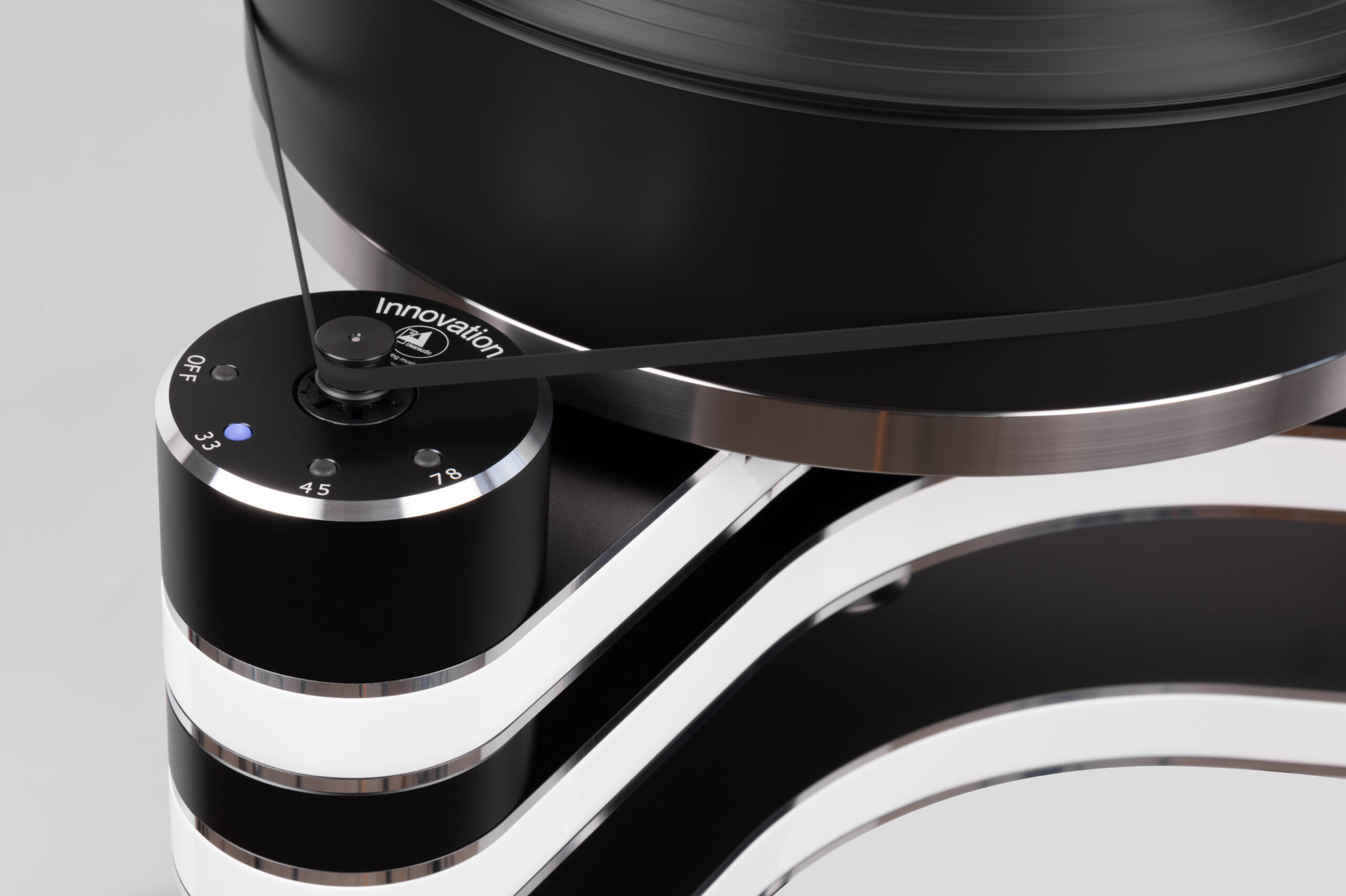

Speed selection is conveniently carried out at the push of a button. Additionally, the Innovation offers the option of mounting a second tonearm.

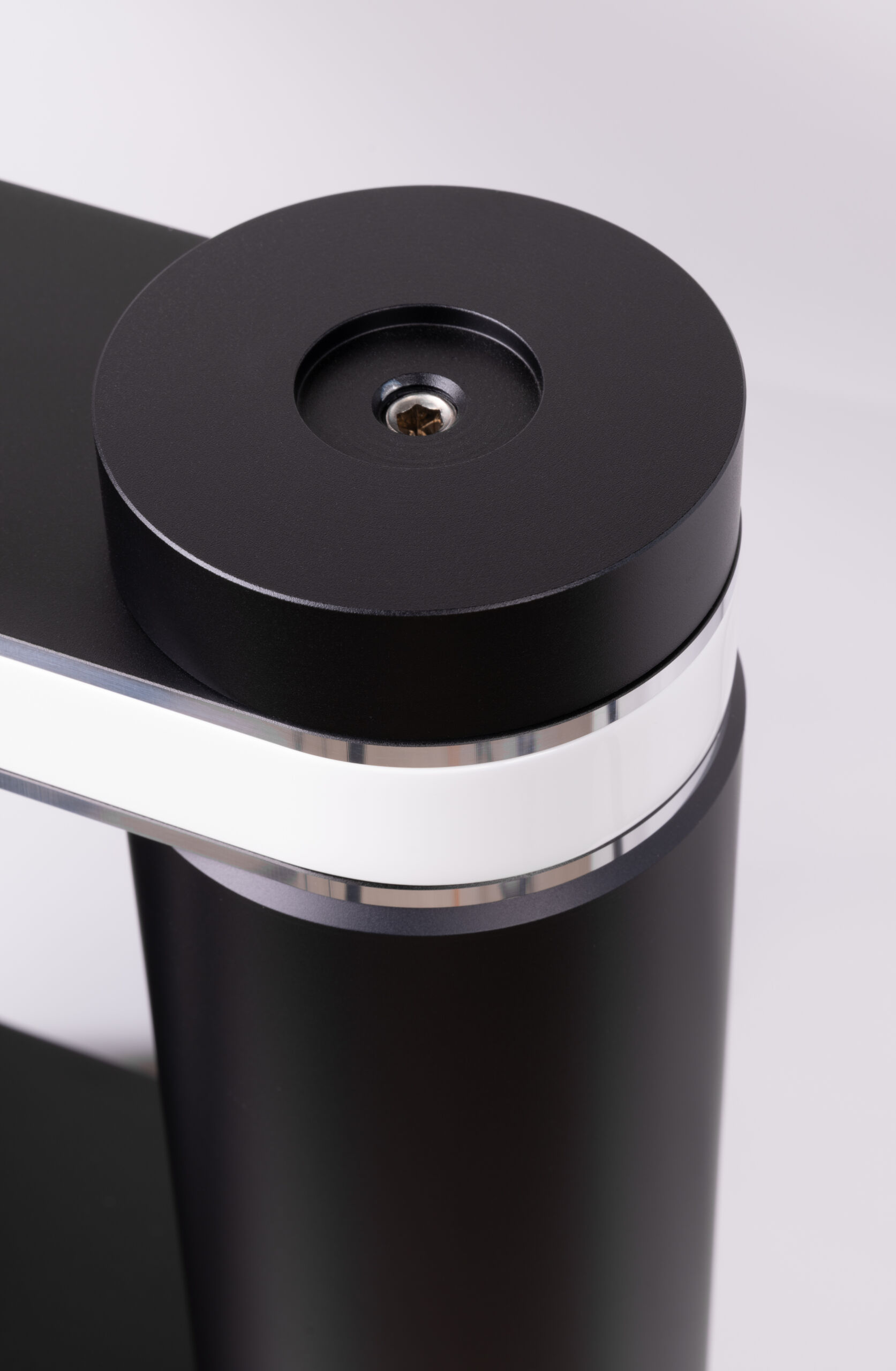

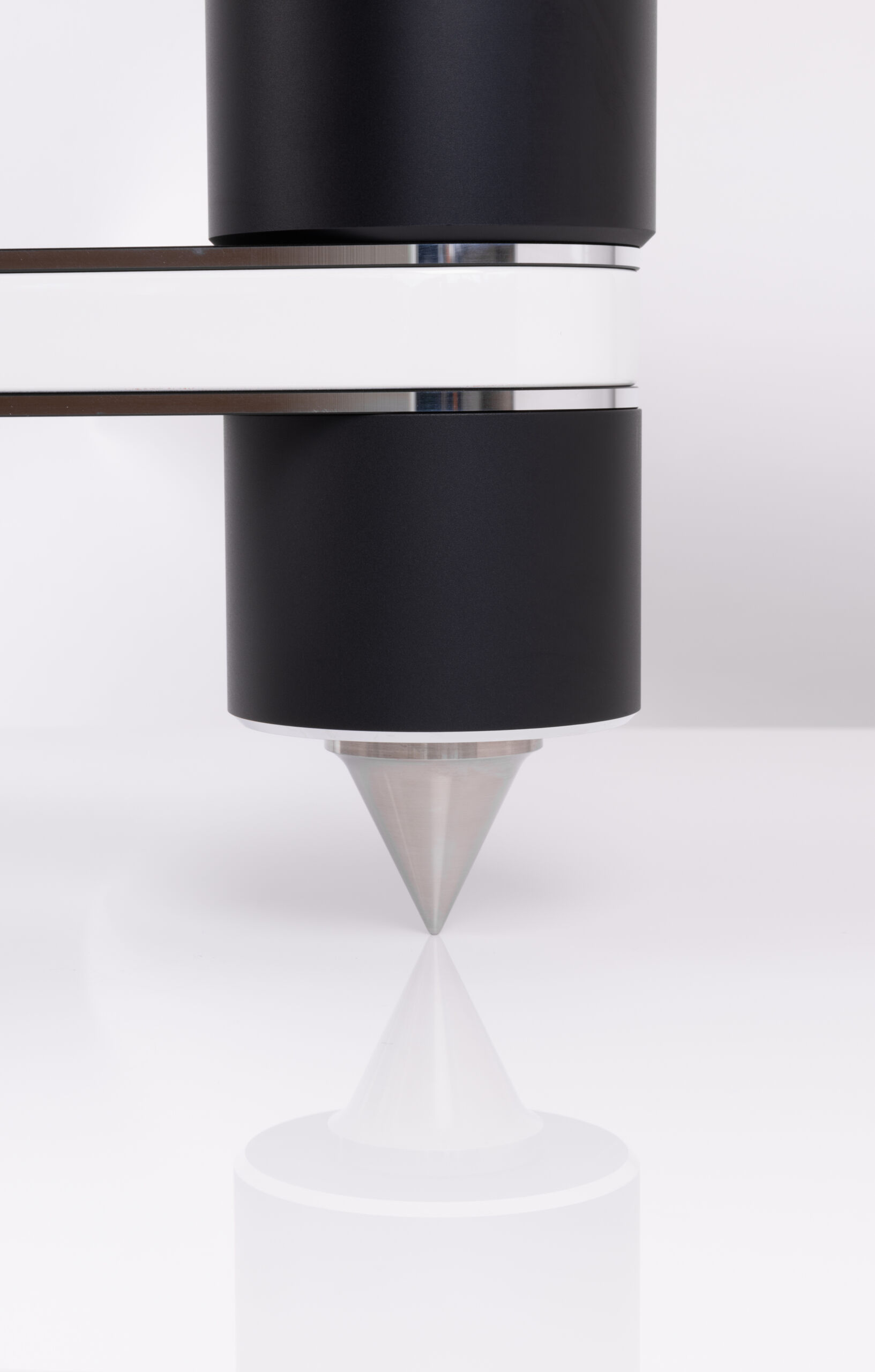

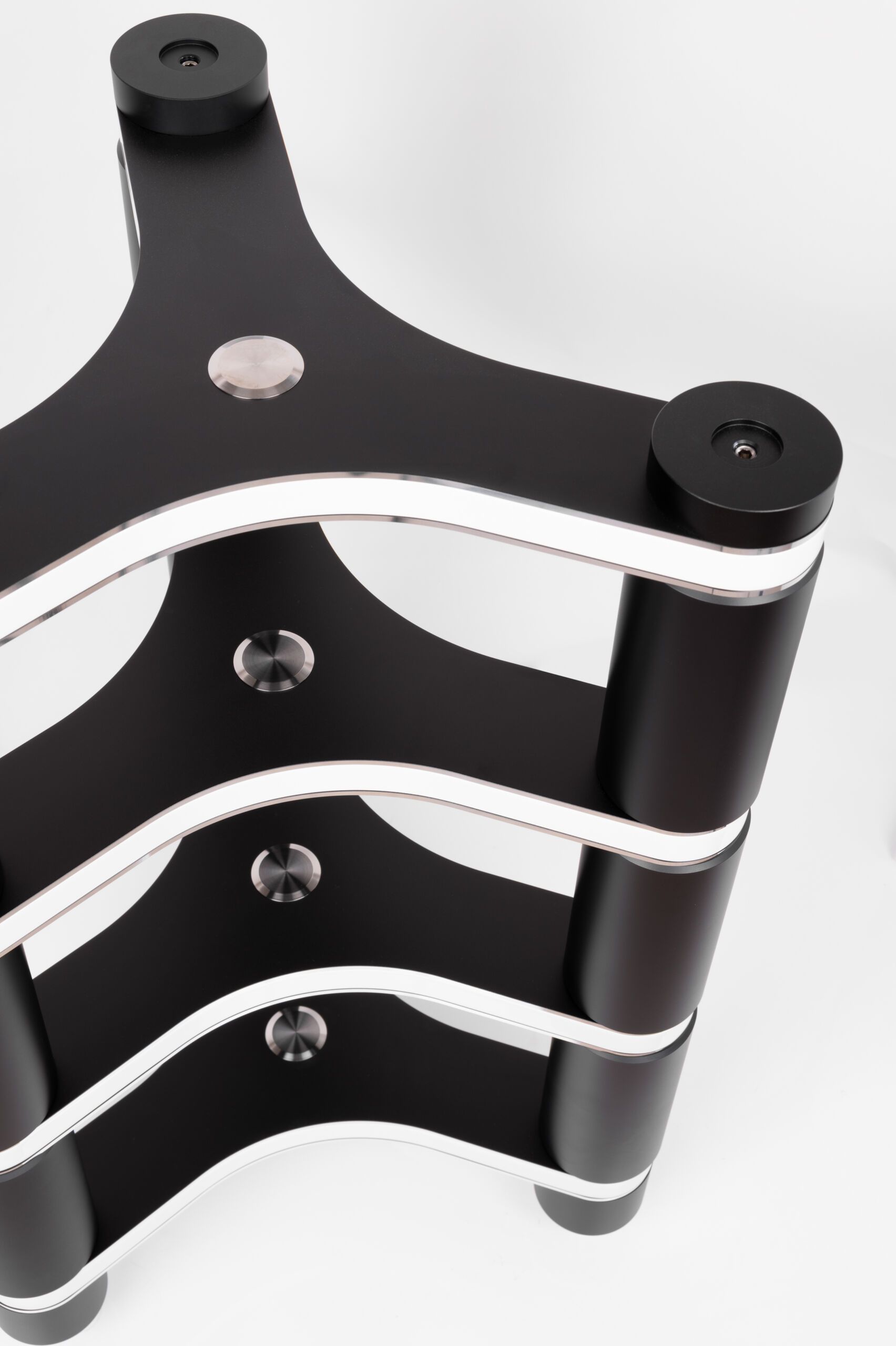

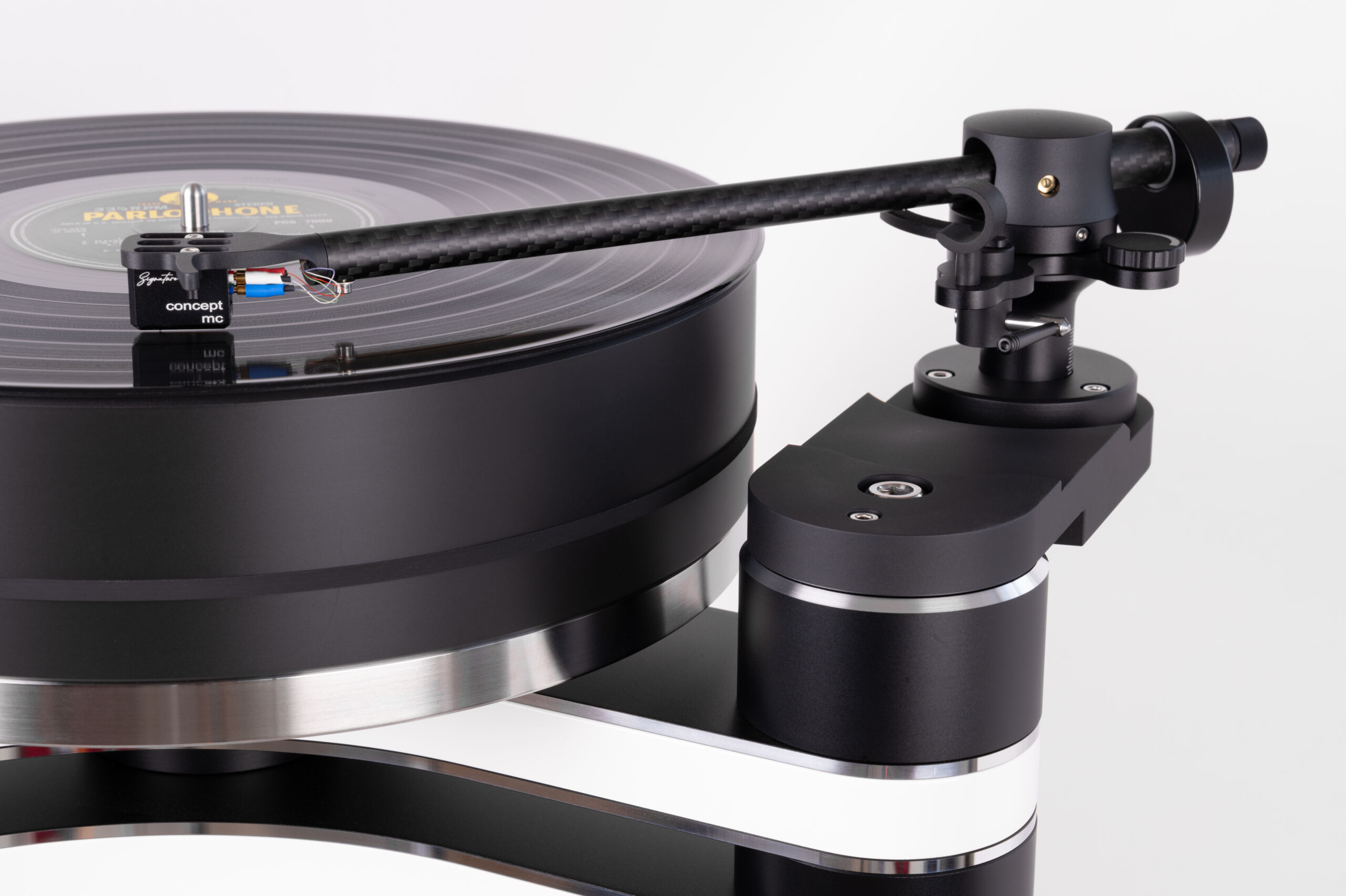

Close-ups

Specifications

Technical Data – Innovation

DESIGN PRINCIPLE:	Resonance-optimised turntable geometry Sandwich construction of laminated wood and aluminium Height-adjustable turntable feet Mounting of two tonearms possible
SPEED RANGE:	33 ⅓, 45, 78 rpm
DRIVE:	High-torque 24 volt DC motor with belt drive Electronically controlled speed regulation (OSC) with optical sensor
BEARING:	Inverted, ground and polished ceramic bearing shaft, sintered bronze bearing bush, including patented magnetic bearing technology (CMB)
PLATTER:	Solid 70 mm platter made of high-density technical plastics with excellent dimensional stability, dynamically balanced, solid stainless steel sub-platter, dynamically balanced
WOW AND FLUTTER:	< ± 0.05 %
POWER CONSUMPTION:	Max. power consumption: 9.3 watts In operation: 2.5 watts Standby mode: 2.5 watts Switched off: 0.0 watts
WEIGHT:	approx. 24 kg (without tonearm and power supply)
DIMENSIONS (W/D/H):	approx. 460 × 485 × 220 mm (with tonearm base, without tonearm)
MANUFACTURER’S GUARANTEE:	5 years* * Upon return of the completed guarantee card to clearaudio within 14 days of purchase.
