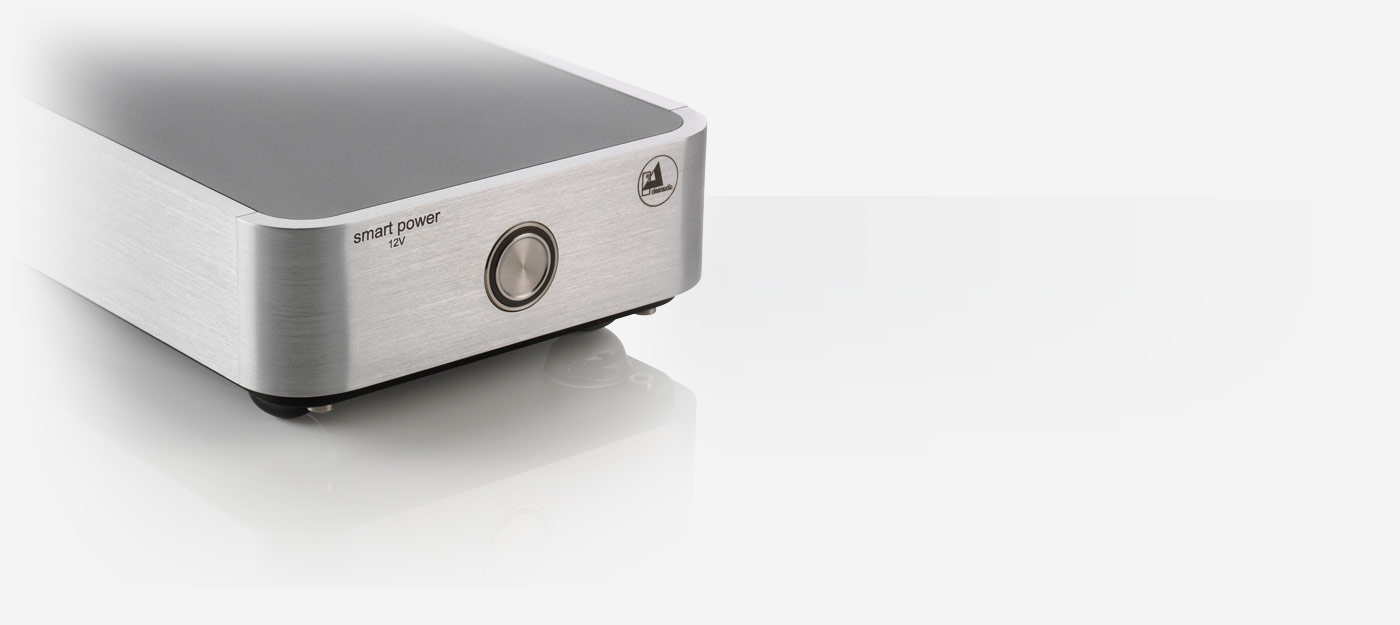

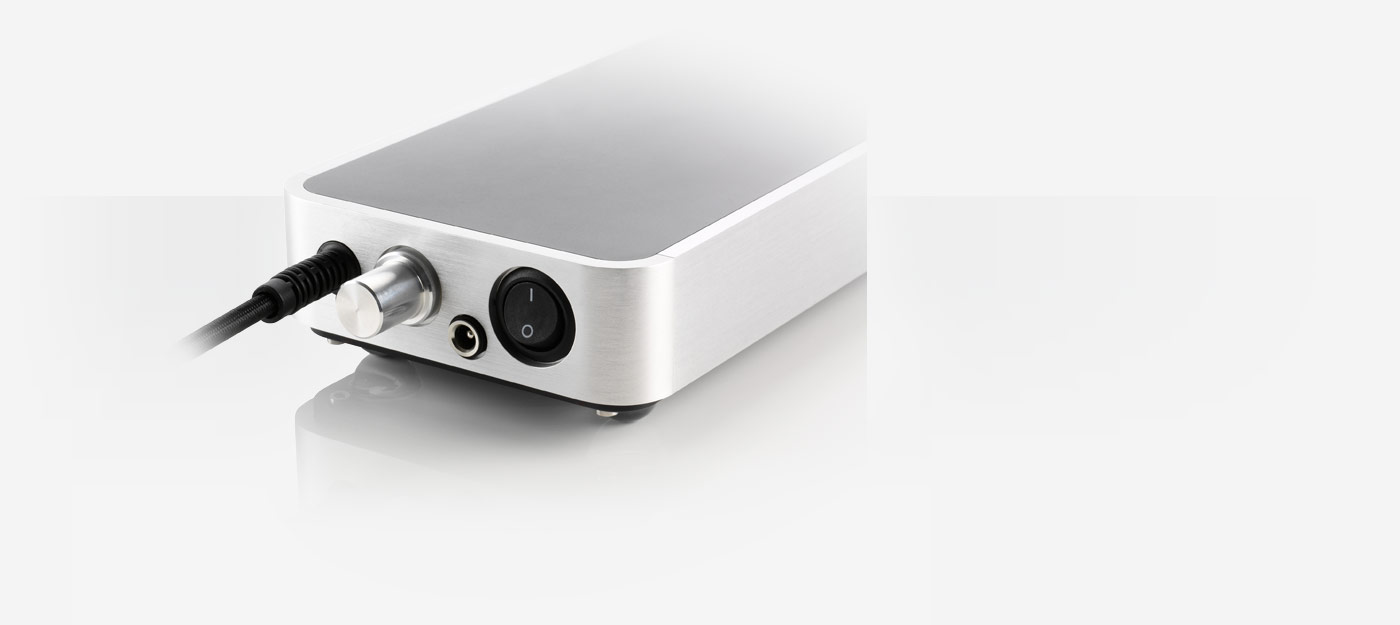

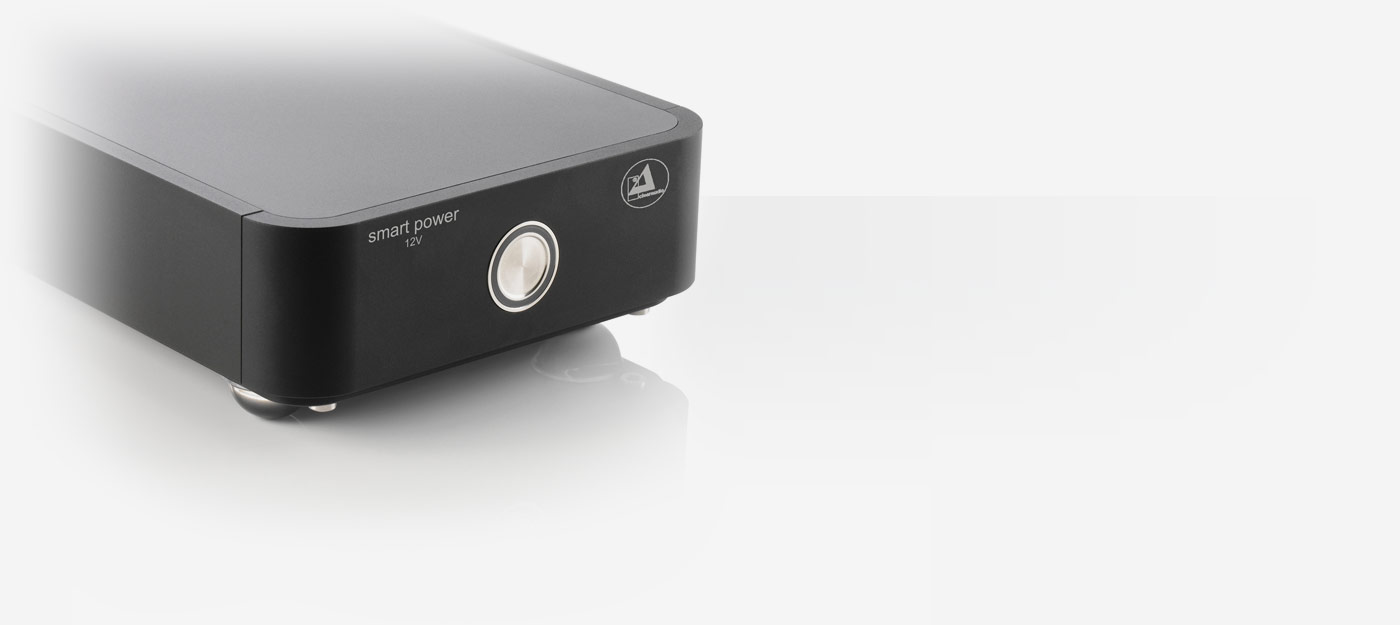

smart power 12V

The excellent battery solution

share this product

Features

Product specifications

The smart power 12V is a battery-based DC power supply upgrade designed for Clearaudio's concept series and Performance DC turntables. Like the smart power 24V, it provides clean power that is independent of the variability and inherent noise of the mains supply. With a minimal output impedance, it delivers a steady, stable voltage, allowing your concept or Performance DC turntable to maintain perfect speed stability. Again, like the 24V version, the smart power 12V can be set to switch automatically from battery play mode into recharging mode and will continue to enhance your turntable's performance and protect it from short circuits and power surges, even while charging. When used with the concept active turntable, the smart power's (12V) benefits are multiplied, since both the turntable's motor and the on-board phonostage are fed with pure, clean DC power.

Total weight

Approx. 2.2 kg

Power supply

100-240 V AC, 50-60 Hz, max. 1.4 A

Dimensions

Width
4.33 inches
Depth
13.78 inches
Height
1.81 inches

Material/color

Silver or black aluminum

Technical specifications
Battery NiMh Battery 12V 500 0mAh
Power supply 100 - 240 V AC, 50 - 60 Hz, max. 1.4 A
Output 12 V DC, max. 1.6 A; fused (time delay fuse)
Power consumption in operation mode 6.5 - 33 watts (depending on the charge cycle)
Power consumption in off mode 0 watts (turned off at rear panel)
Weight Approx. 2.2 kg
Dimensions (w/d/h in inches) 4.33 × 13.78 × 1.18
Dimensions (w/d/h in mm) 110 × 350 × 46
Warranty 2 years* (except batteries)
